SOIC to DIP Adapter 20 Pin

Converts 20-pin SOIC components to a 20 Pin DIP package

£1.43 each (excluding VAT: £1.19)
439 available
Product Code:20 Pin
EAN:7426787870309
Share: Twitter Facebook

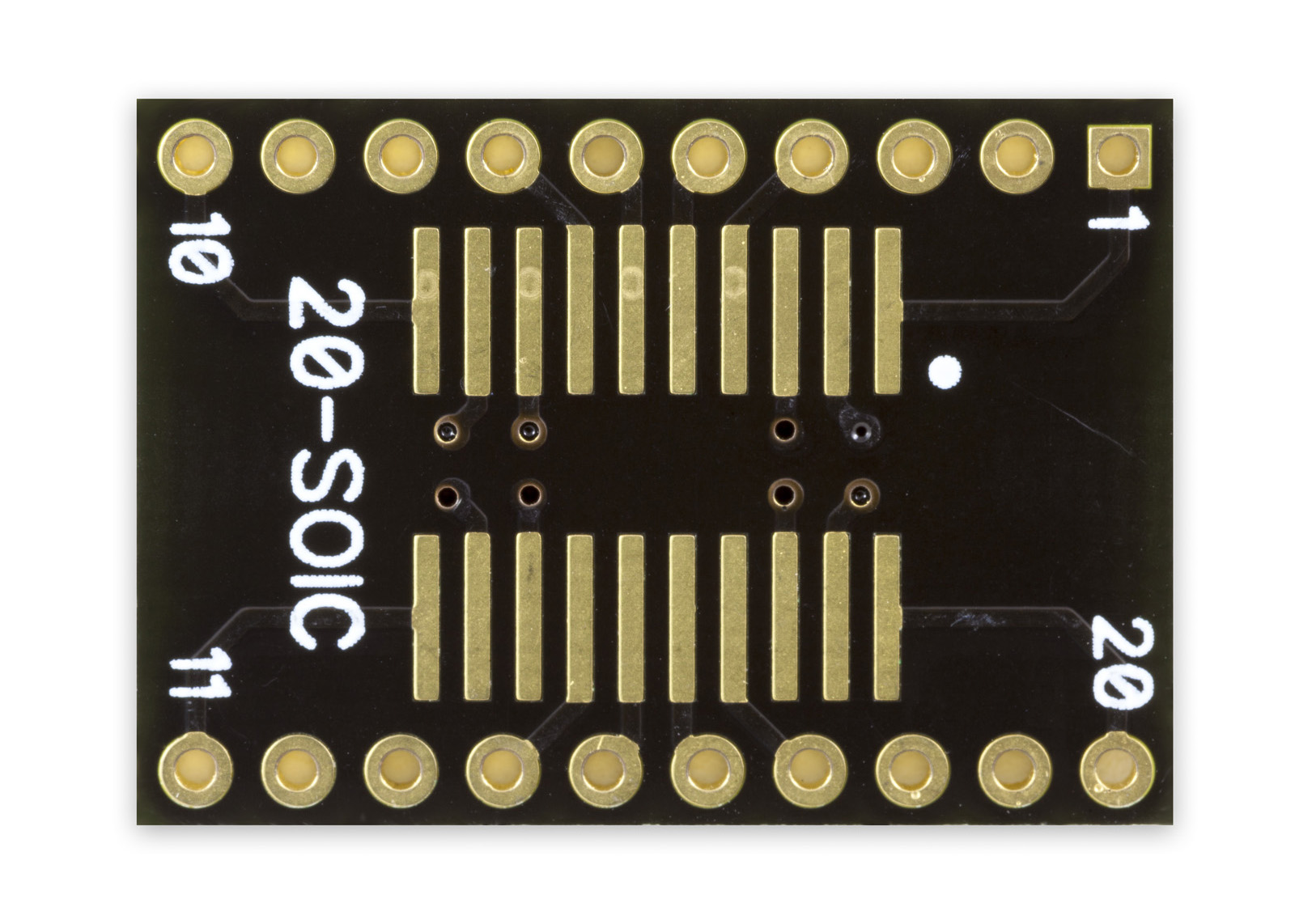

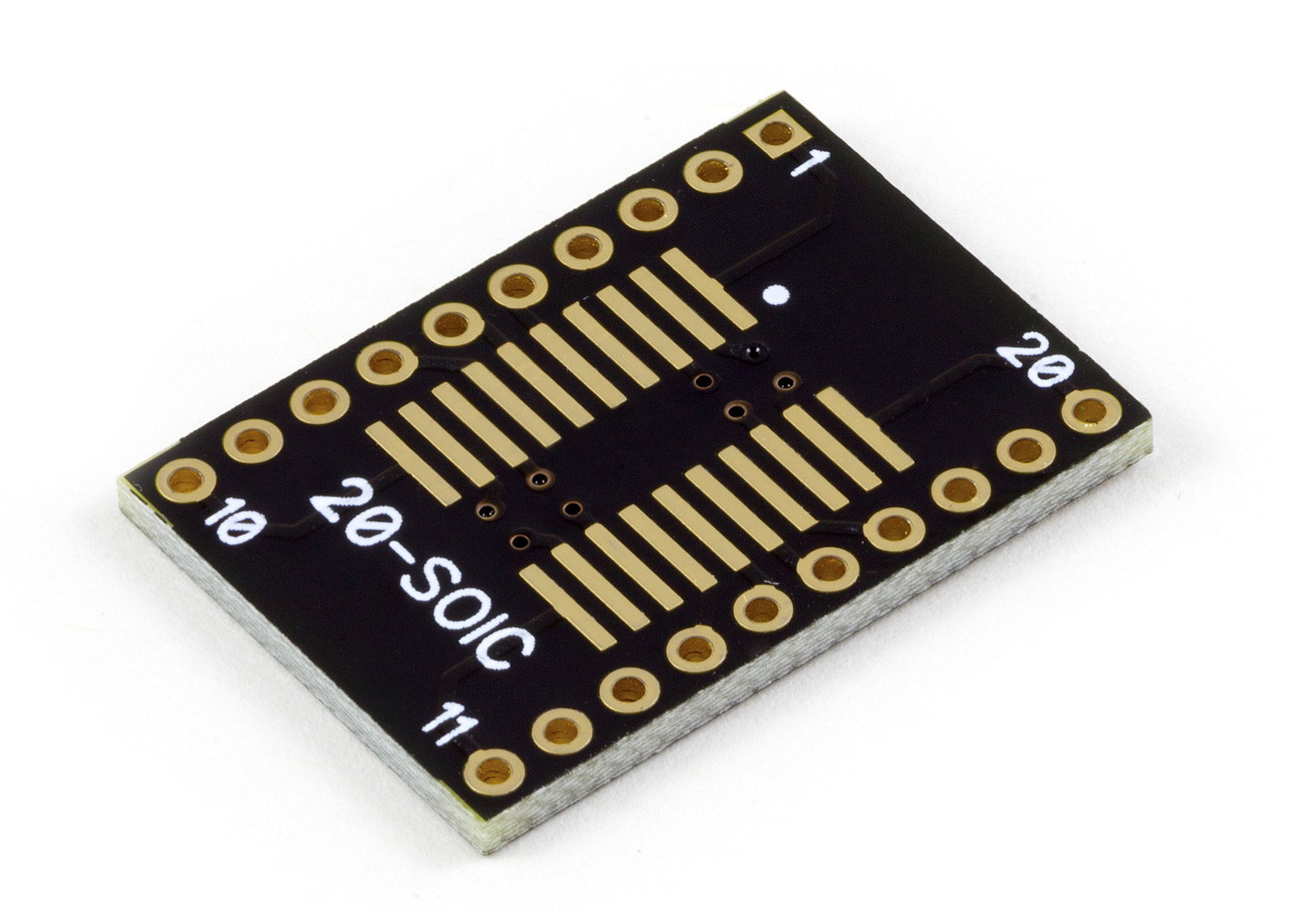

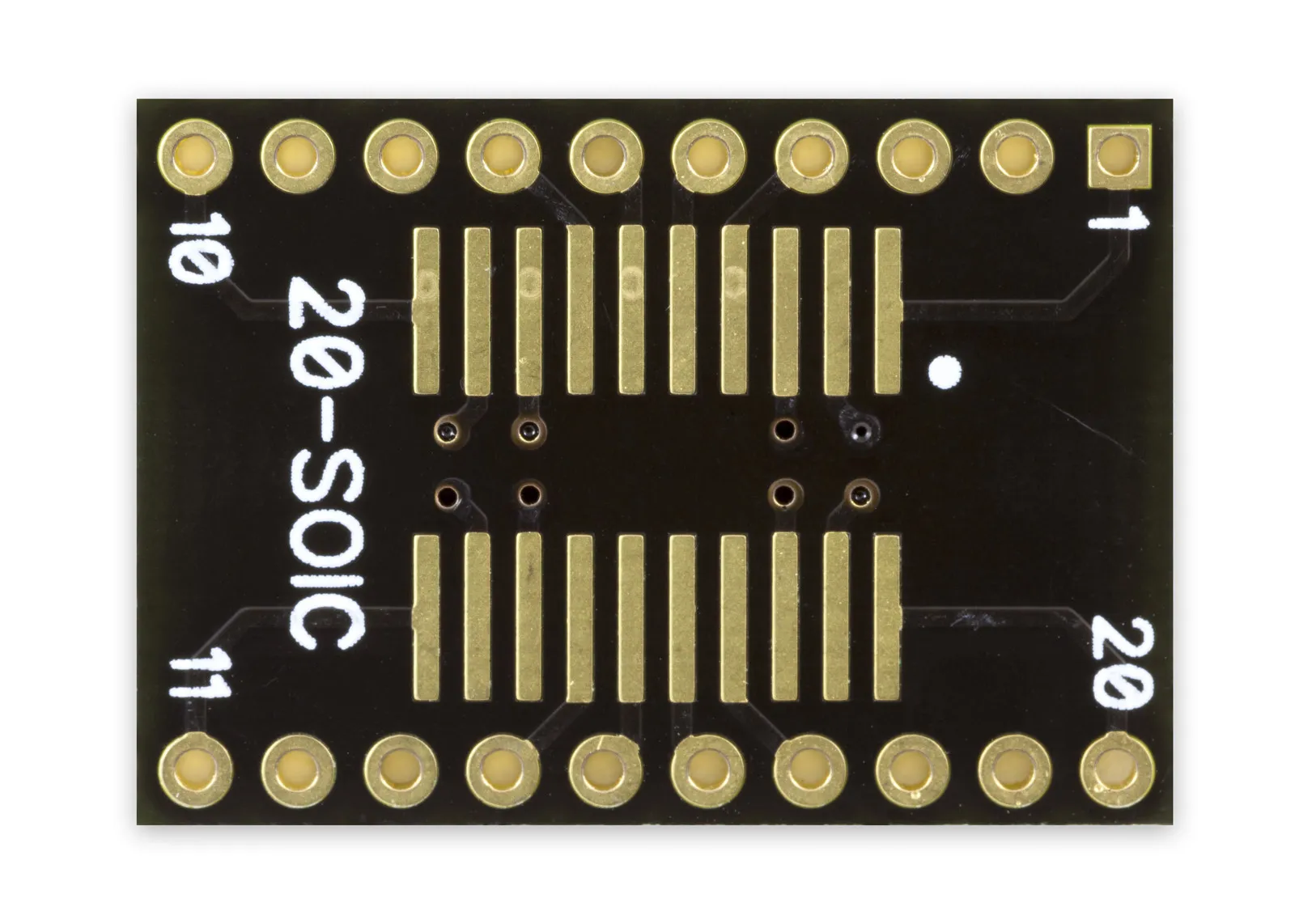

This SOIC breakout board is a PCB that will interface a SOIC package to 0.1" (2.54mm) headers that can be used on breadboards to prototype your projects.

The board is compatible with 150mil and 300mil wide SOIC packages.

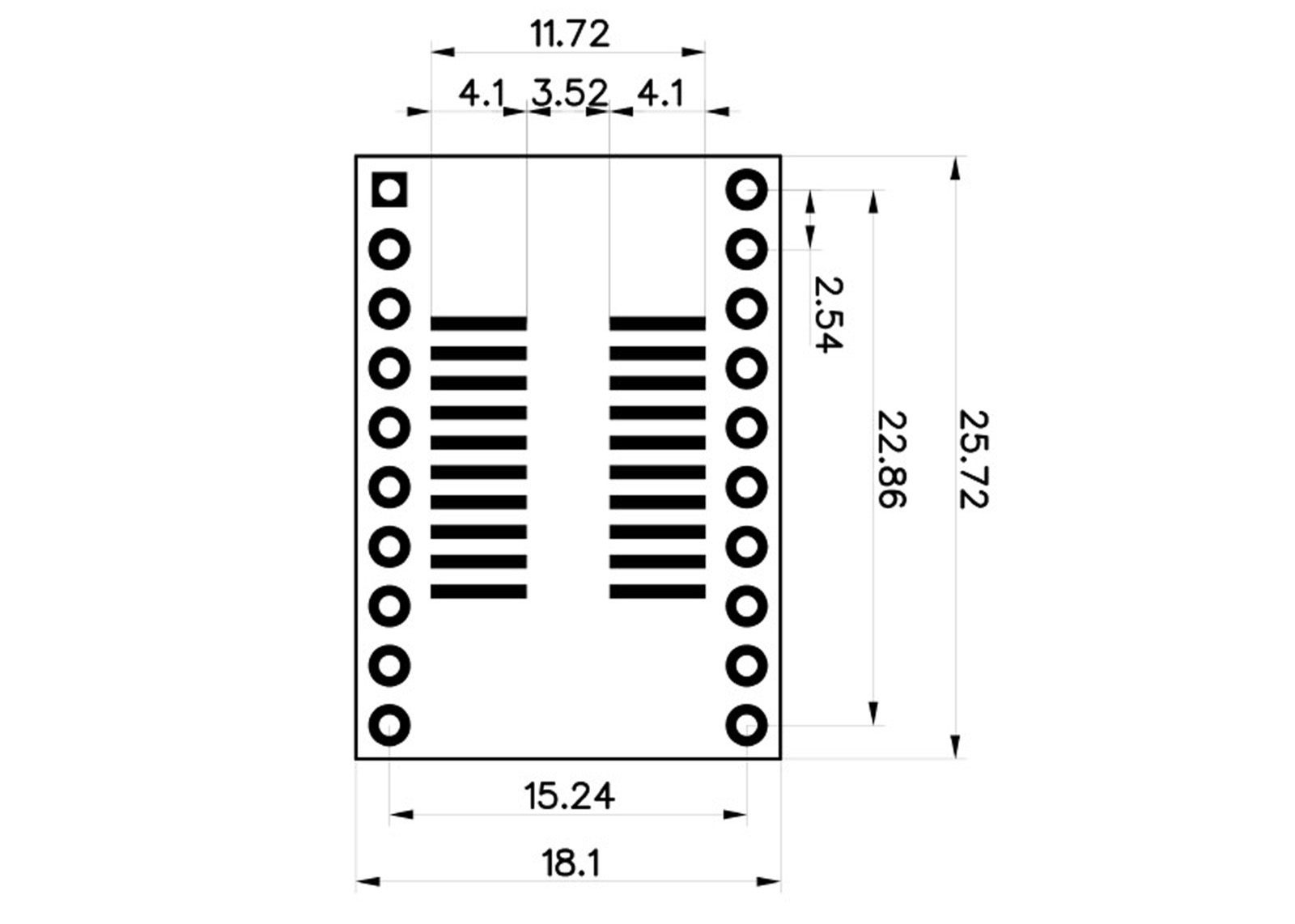

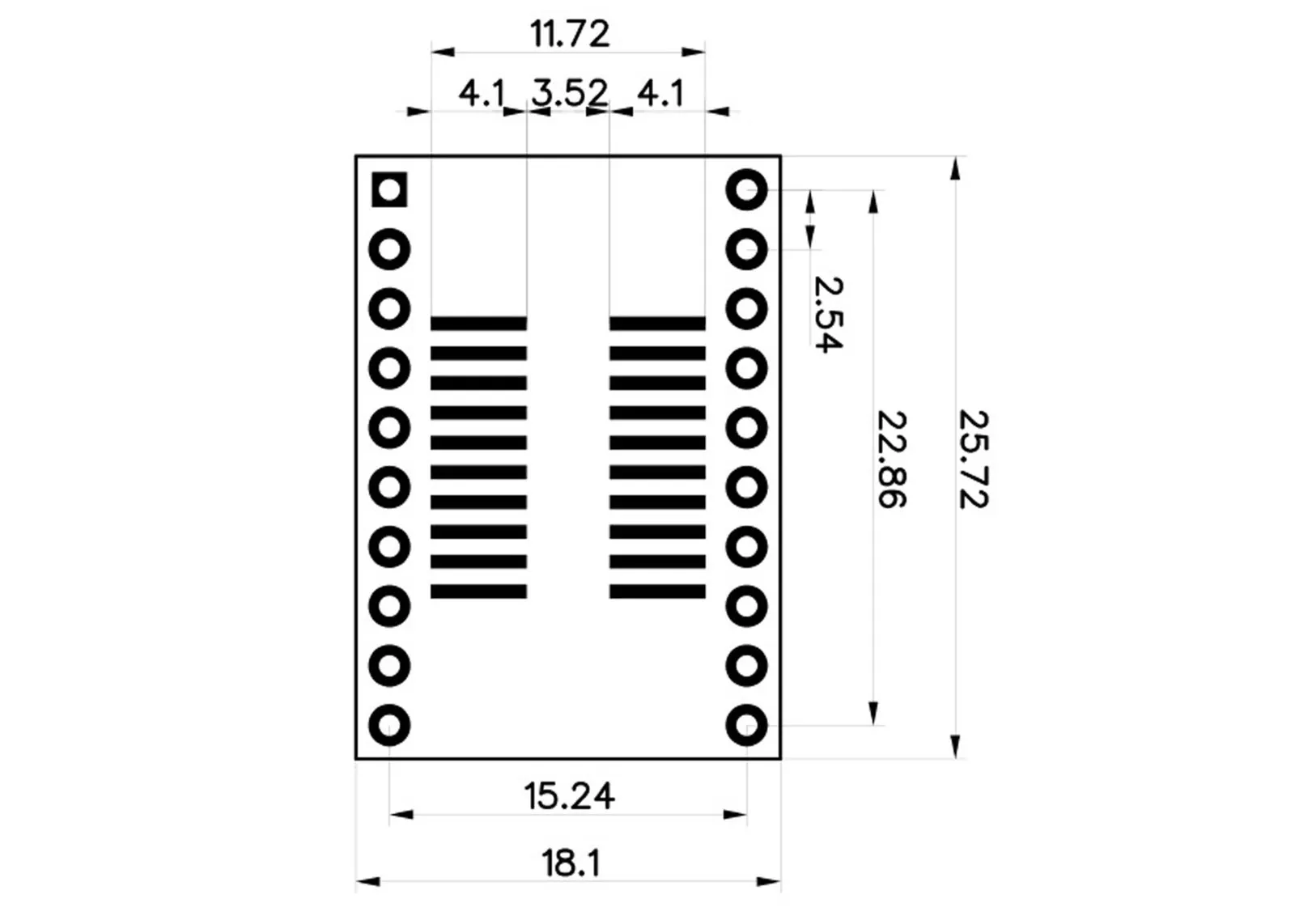

Dimensions:

18.1mm x 25.72mm

Spacing between pin rows: 15.24mm
