Mounting Kit

Mounting kit to use on our Raspberry Pi boards

£1.55 each (excluding VAT: £1.29)

254 available

Product Code:Mounting Posts

EAN:7426787870255

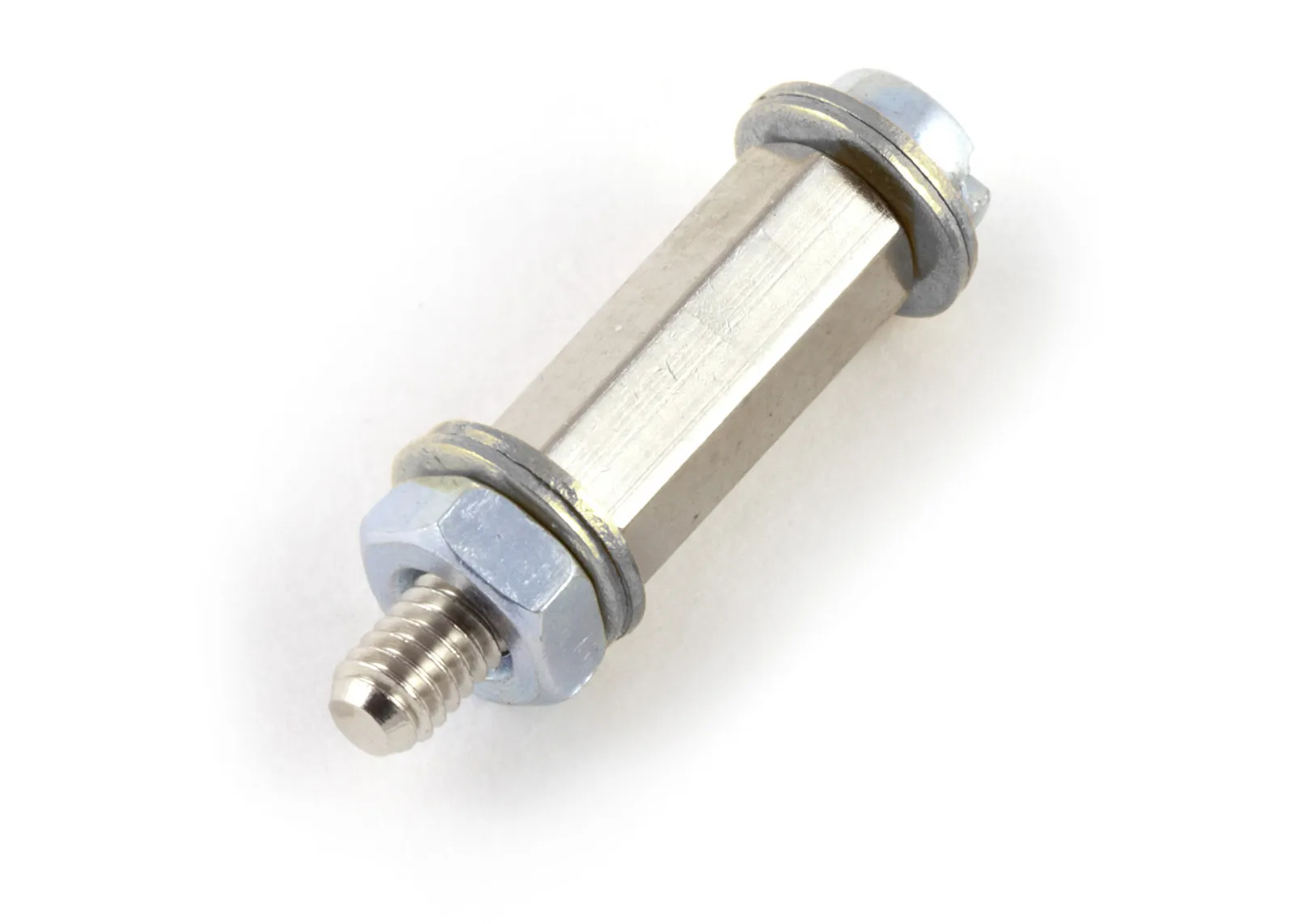

This single mounting kit securely attaches the expansion board(s) to your Raspberry Pi.

The kit comprises:

1 x threaded spacer
4 x washers
1 x nut
1 x bolt

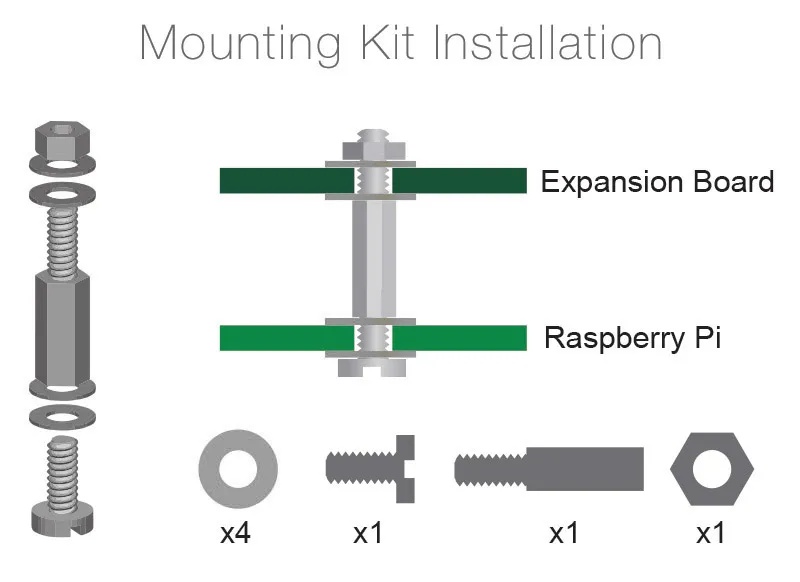

The kit should be fitted with one washer on either side of the Raspberry Pi board with the bolt facing up; the threaded spacer is then installed, and a washer under the expansion board and the remaining washer and nut installed on the top of the expansion board.

Do not over-tighten when installing this product.

This product requires a soldering iron and solder to fit the connectors.

Mounting Kit

£1.55 each (excluding VAT: £1.29)

Technical Details

Mounting kit dimensions

Mounting Kit

£1.55 each (excluding VAT: £1.29)

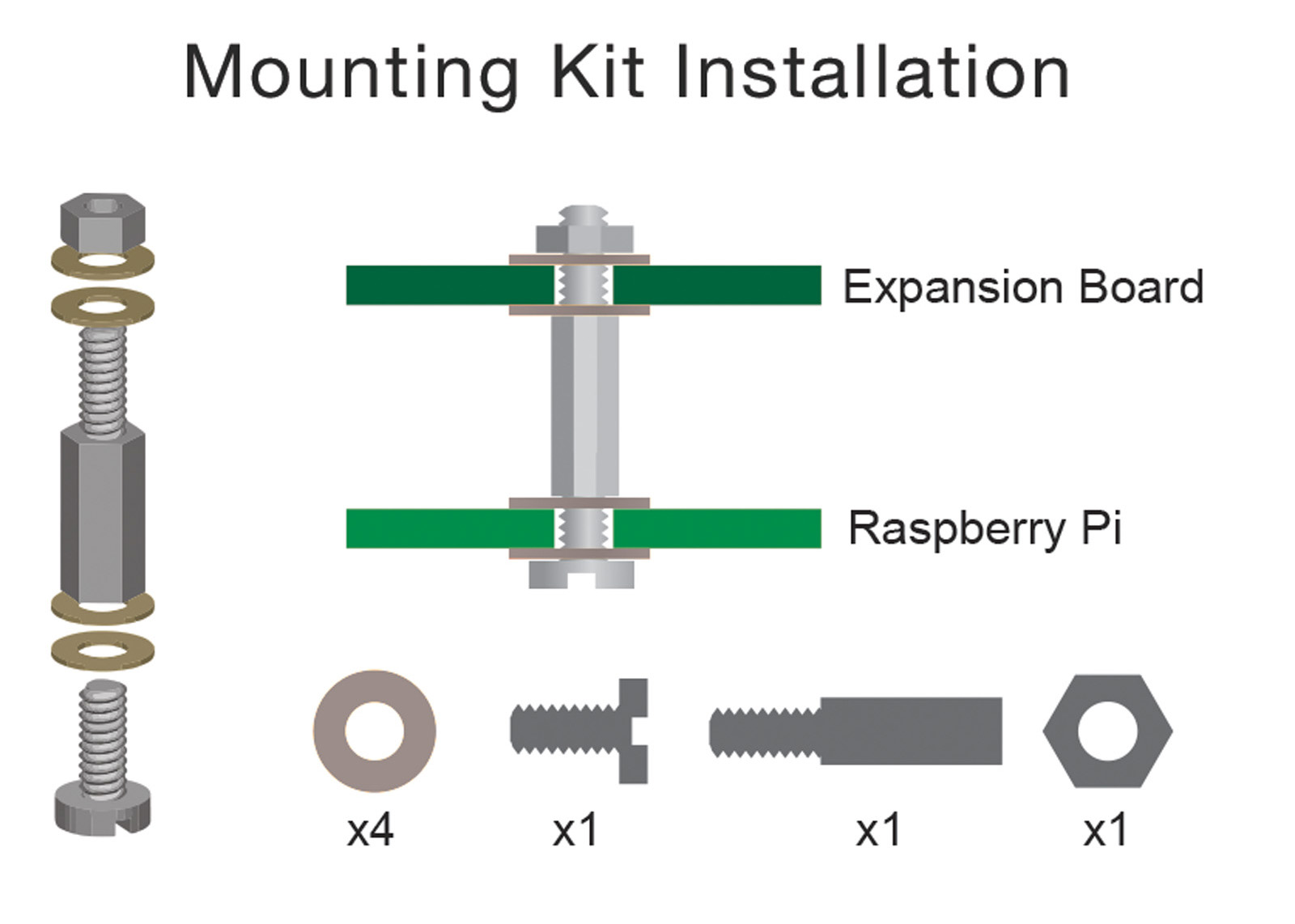

Assembly Instructions

This single mounting kit is compatible with our Raspberry Pi expansion boards.

Additional mounting kits can be used for stacking other boards with compatible mounting holes.

Mounting kit
