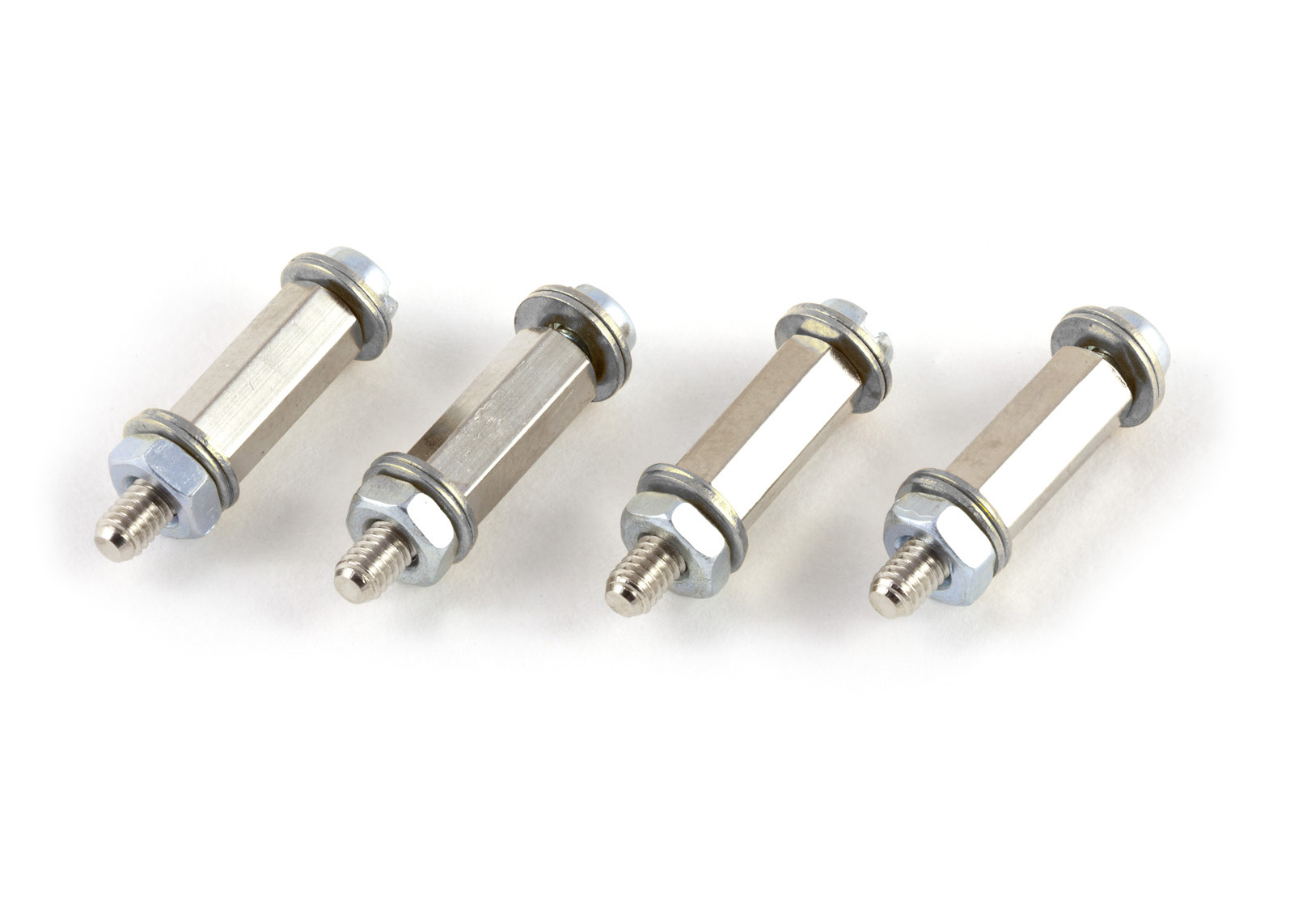

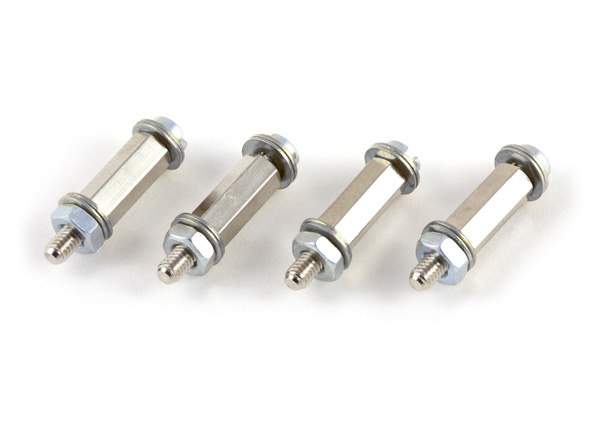

Mounting Kit Four Pack

Mounting kit to use on our Raspberry Pi boards

£4.19 each (excluding VAT: £3.49)

976 available

Product Code:4 x Mounting Posts

EAN:7426787870262

This mounting kit securely attaches the expansion board(s) to your Raspberry Pi.

The kit comprises:

4 x threaded spacer
16 x washers
4 x nut
4 x bolt

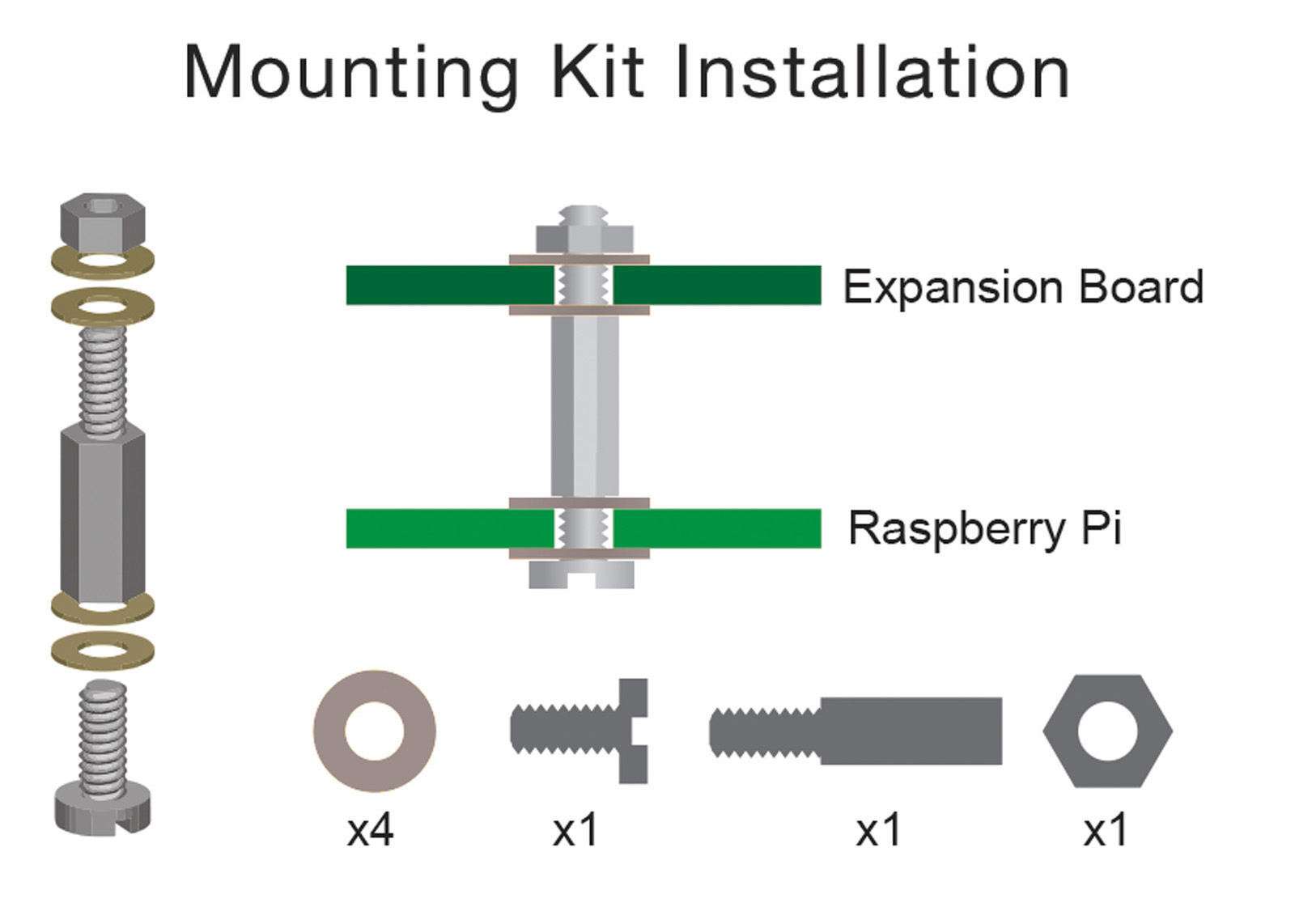

The kit should be fitted with one washer on either side of the Raspberry Pi board with the bolt facing up; the threaded spacer is then installed, and a washer under the expansion board and the remaining washer and nut installed on the top of the expansion board.

Do not over-tighten when installing this product.

This product requires a soldering iron and solder to fit the connectors.

Mounting Kit Four Pack

£4.19 each (excluding VAT: £3.49)

Technical Details

Mounting kit dimensions

Mounting Kit Four Pack

£4.19 each (excluding VAT: £3.49)

Assembly Instructions

This kit is compatible with all of our Raspberry Pi expansion boards.

Additional mounting kits can be used for stacking other boards with compatible mounting holes.

Mounting Kit
