Breakout Pi Plus

Prototyping board for Raspberry Pi

£4.79 each (excluding VAT: £3.99)
97 available
Product Code: Green
EAN: 7426787870125
Add a Mounting Kit Four Pack
for only £3.49 each ex vat
Order Mounting kit to use on our Raspberry Pi boards

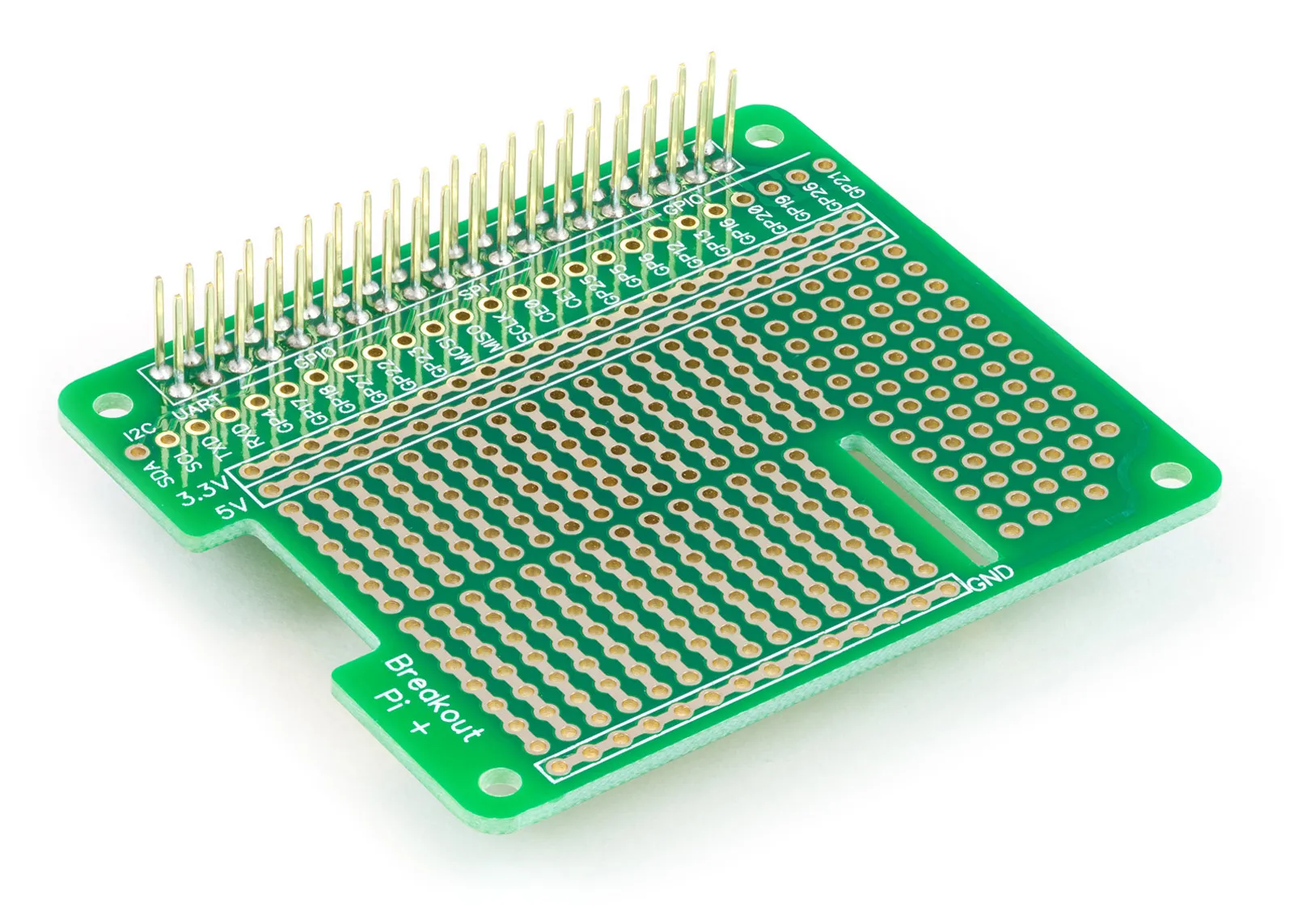

The Breakout Pi Plus is a valuable and versatile prototyping expansion board for the Raspberry Pi and other compatible single-board computers.

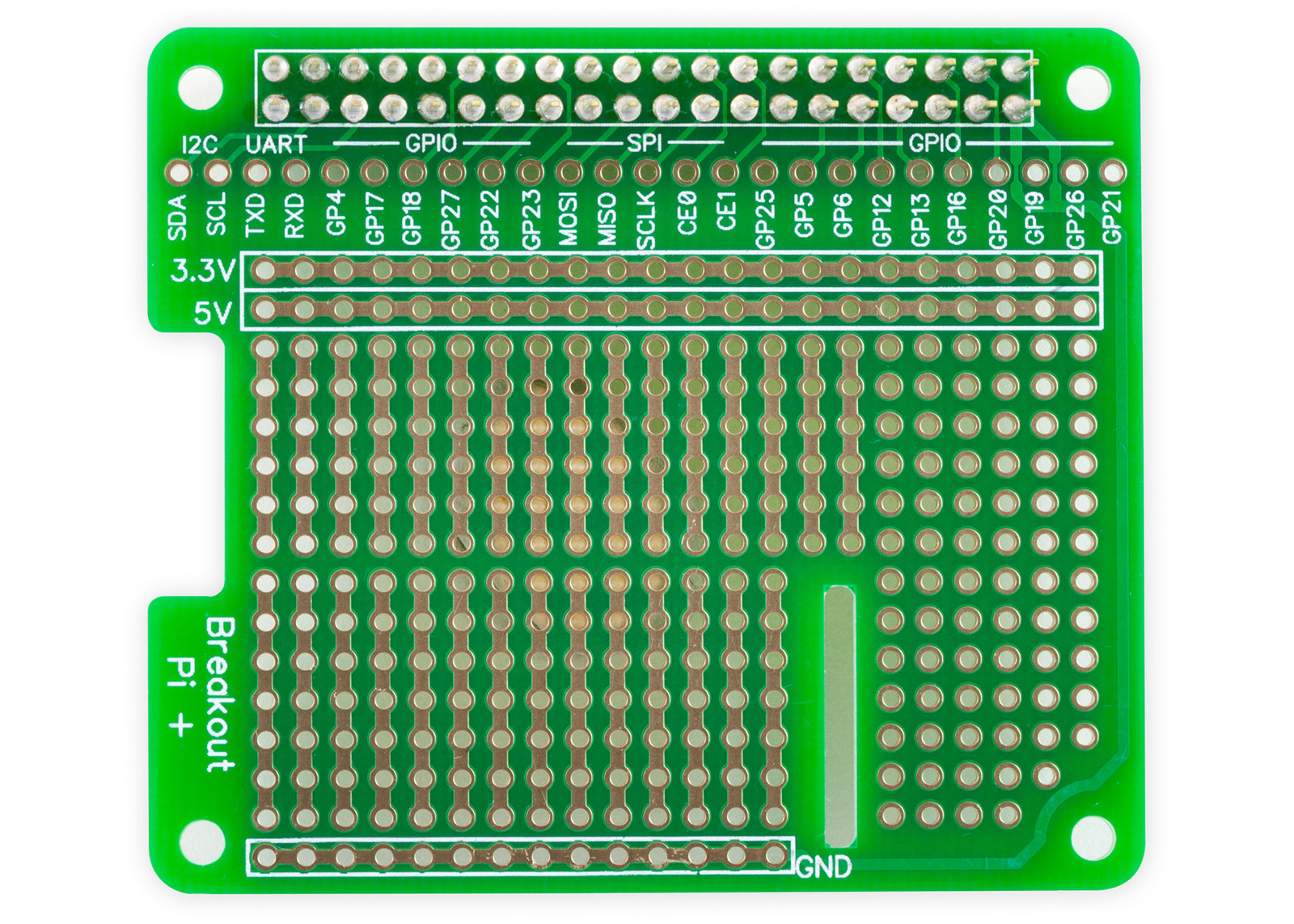

All of the Raspberry Pi GPIO pins except GPIO 24, ID_SC and ID_SD  are broken out into separate pads and 3.3 volt, 5 volt and ground rails run across the main prototyping area of the board.

The board has a working area with pads arranged into groups of pins and a separate area of single pins.

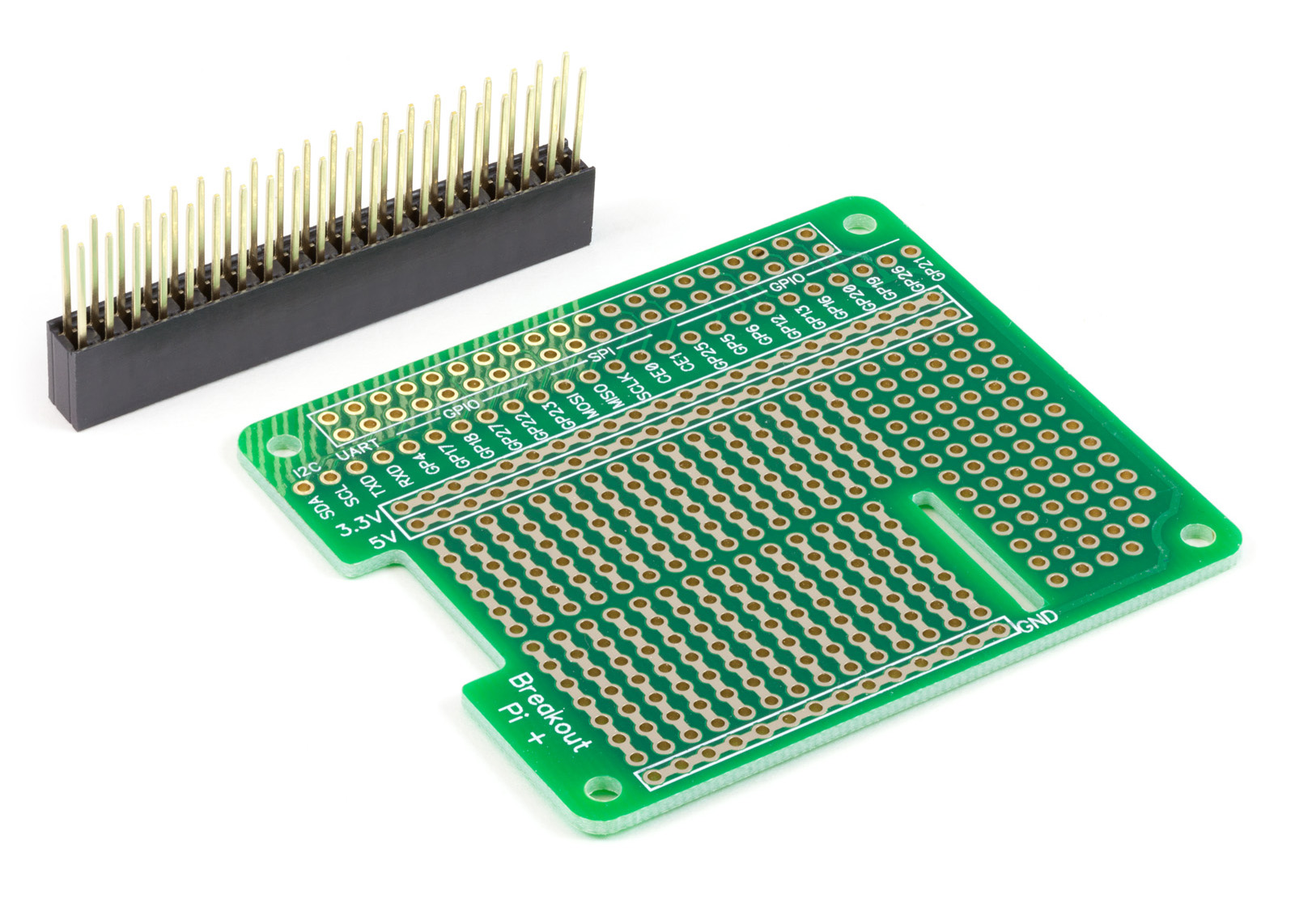

The board is supplied as a ready-to-solder kit with a 40-pin header to connect to the Raspberry Pi.

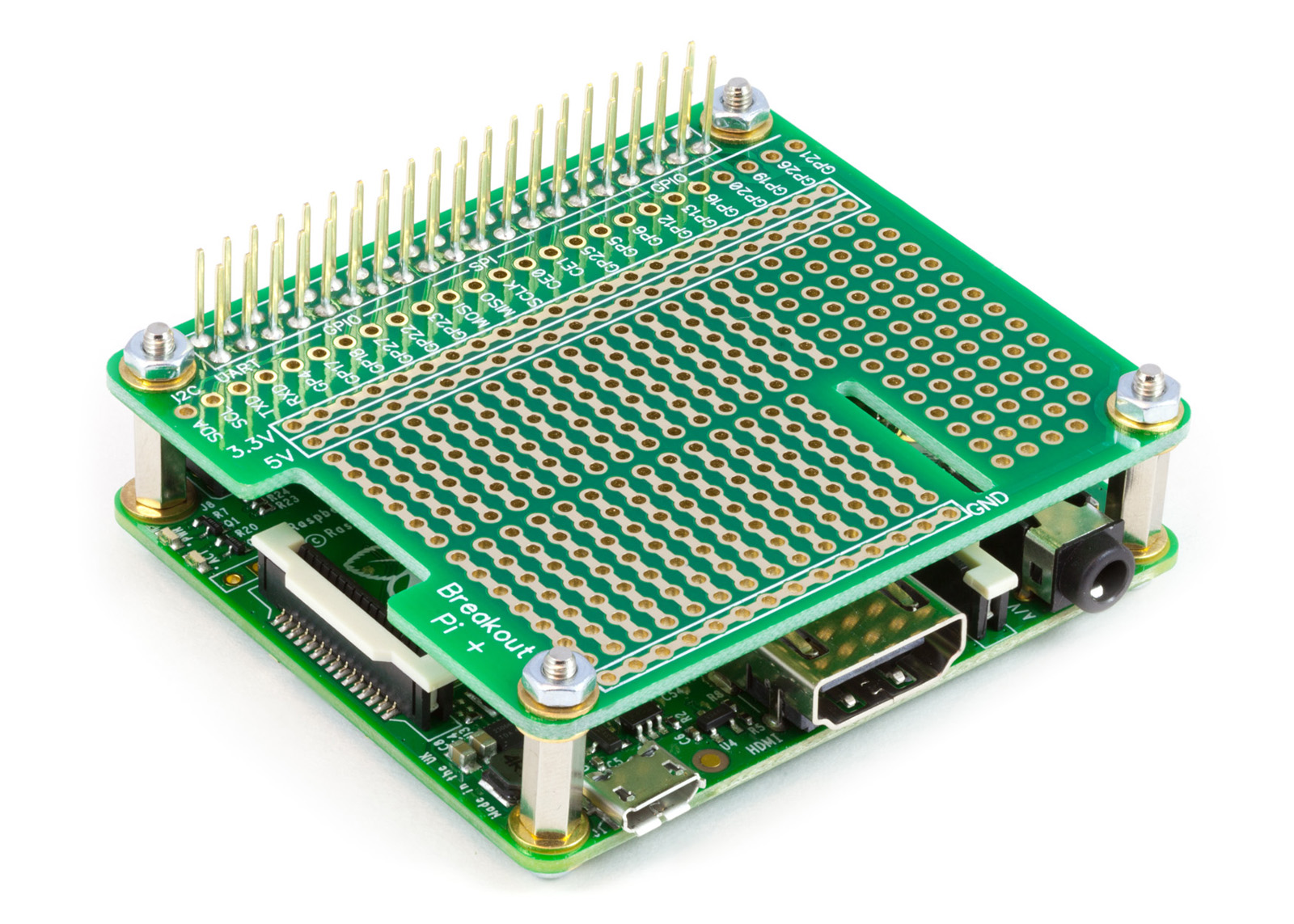

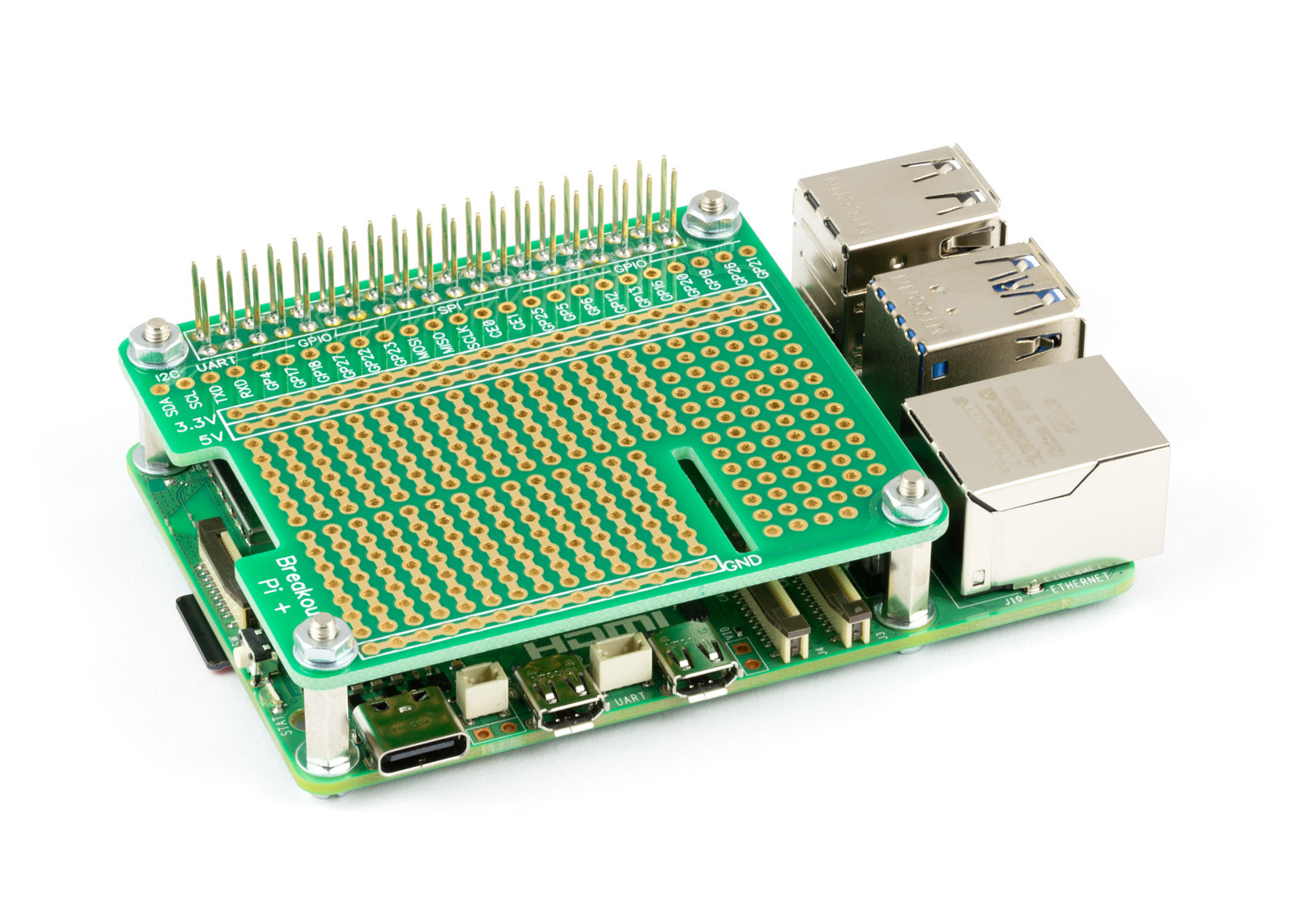

You can use our optional mount kit pack to secure your prototyping board to your Raspberry Pi.


Compatibility

We have tested the Breakout Pi Plus on the following platforms.

Model Status
Raspberry Pi Model A / B
Raspberry Pi 1 Model A+ / B+
Raspberry Pi 2 Model B
Raspberry Pi 3 Model A+ / B / B+
Raspberry Pi 4 Model B
Raspberry Pi 5
Raspberry Pi Zero
Raspberry Pi Zero W / Zero 2 W
Raspberry Pi Compute Module 4 IO Board
Raspberry Pi 400
Orange Pi
Asus Tinker Board
Odroid
