The Raspberry Pi is a great low-cost computer with thousands of different uses, but one thing it does not come with is a real time clock. This means that every time you switch off your Raspberry Pi, it forgets what the time is, and you have to manually set it again the next time you switch your Raspberry Pi on.

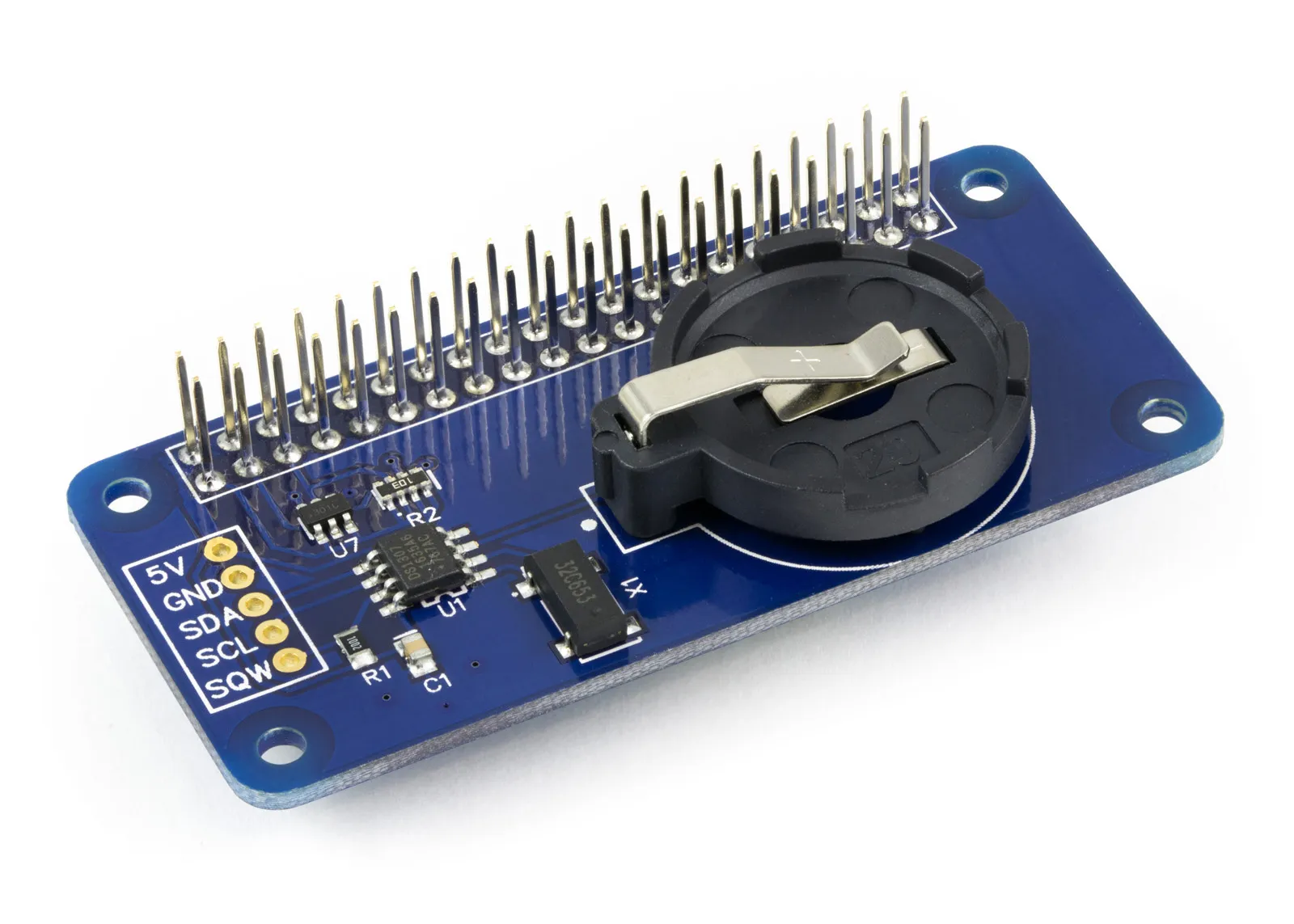

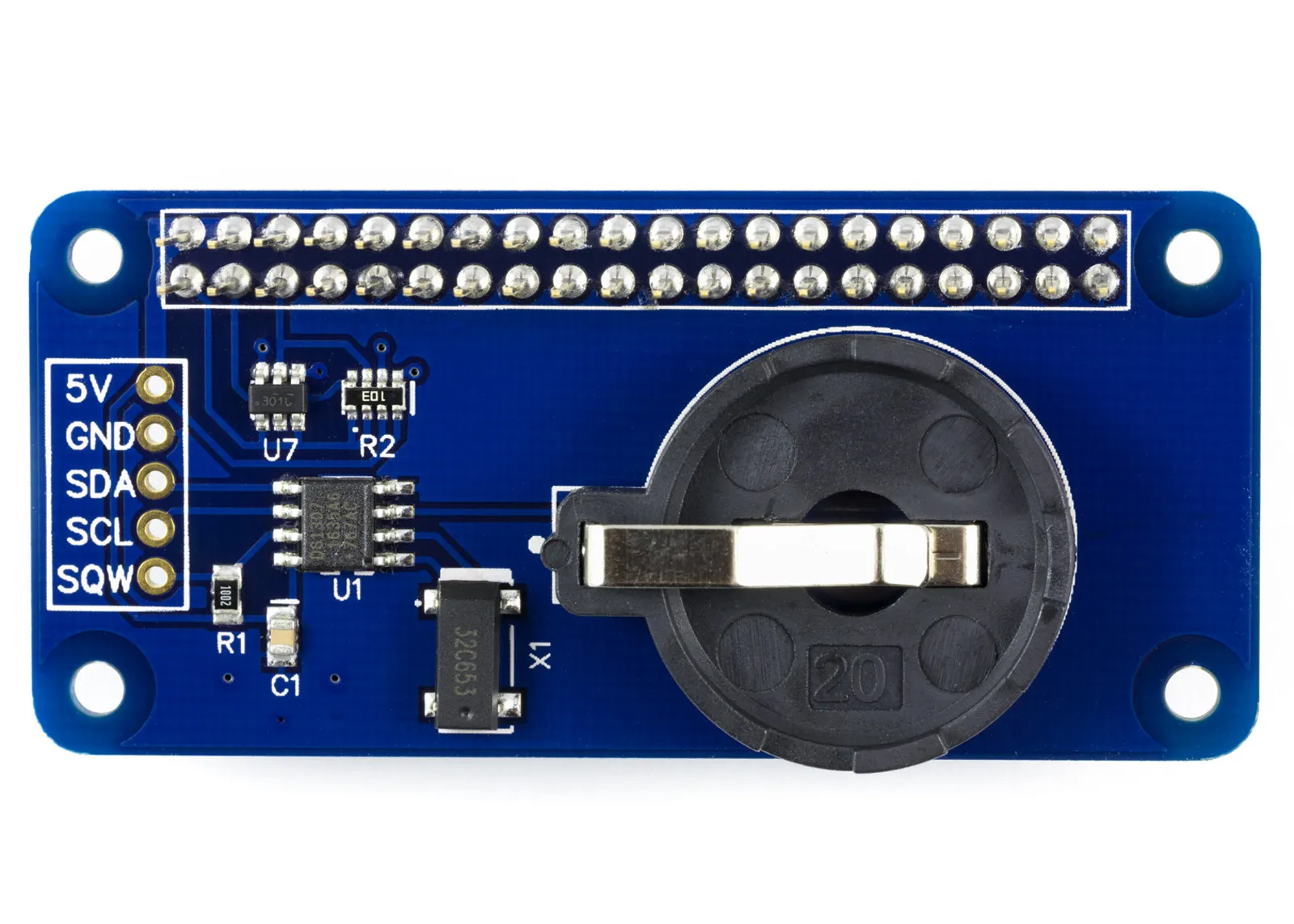

The RTC Pi is a battery backed real time clock for the Raspberry Pi and other compatible single board computers. It keeps track of the time while the Raspberry Pi is switched off and allows it to retrieve the current date and time from the RTC Pi when it is switched back on.

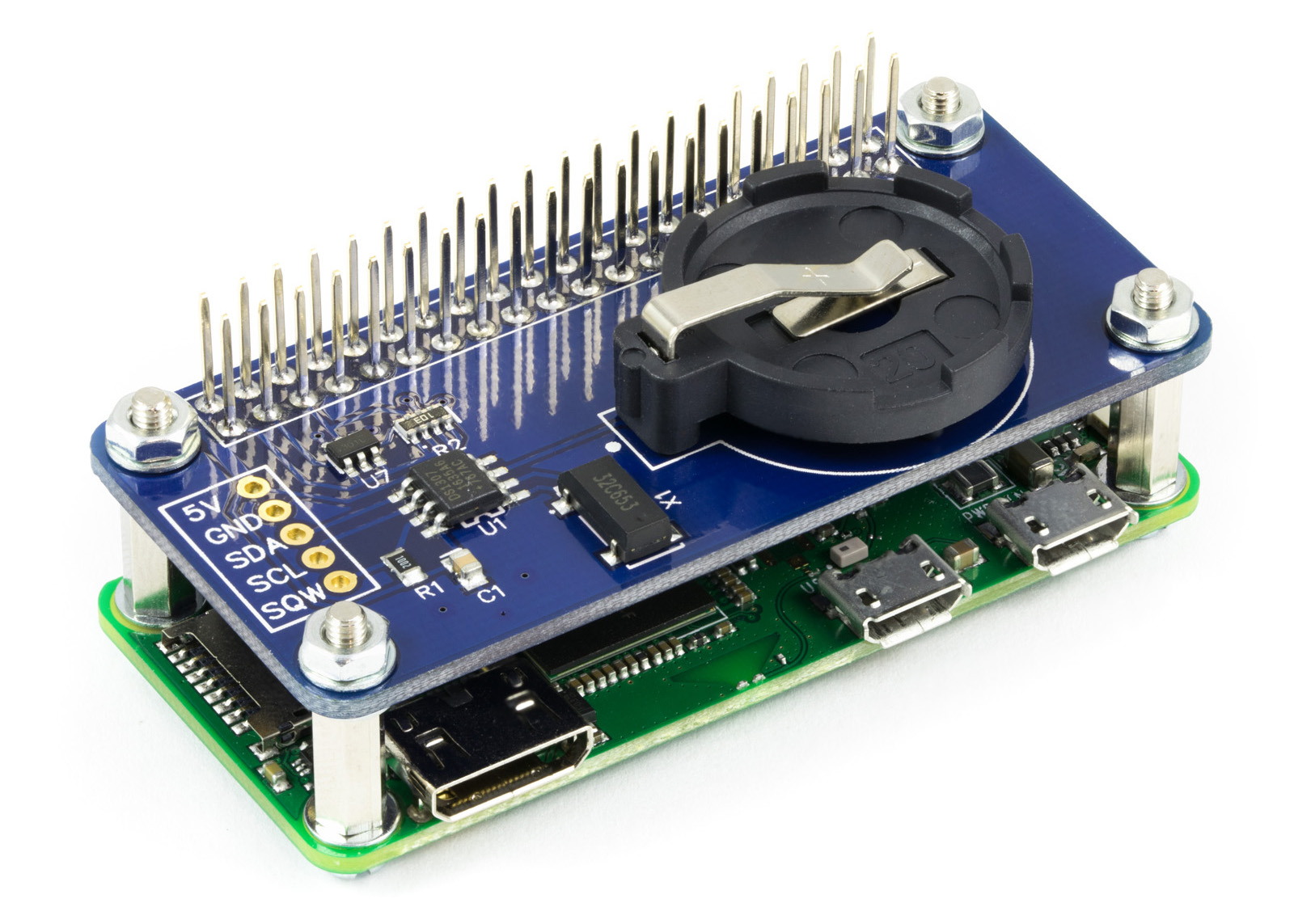

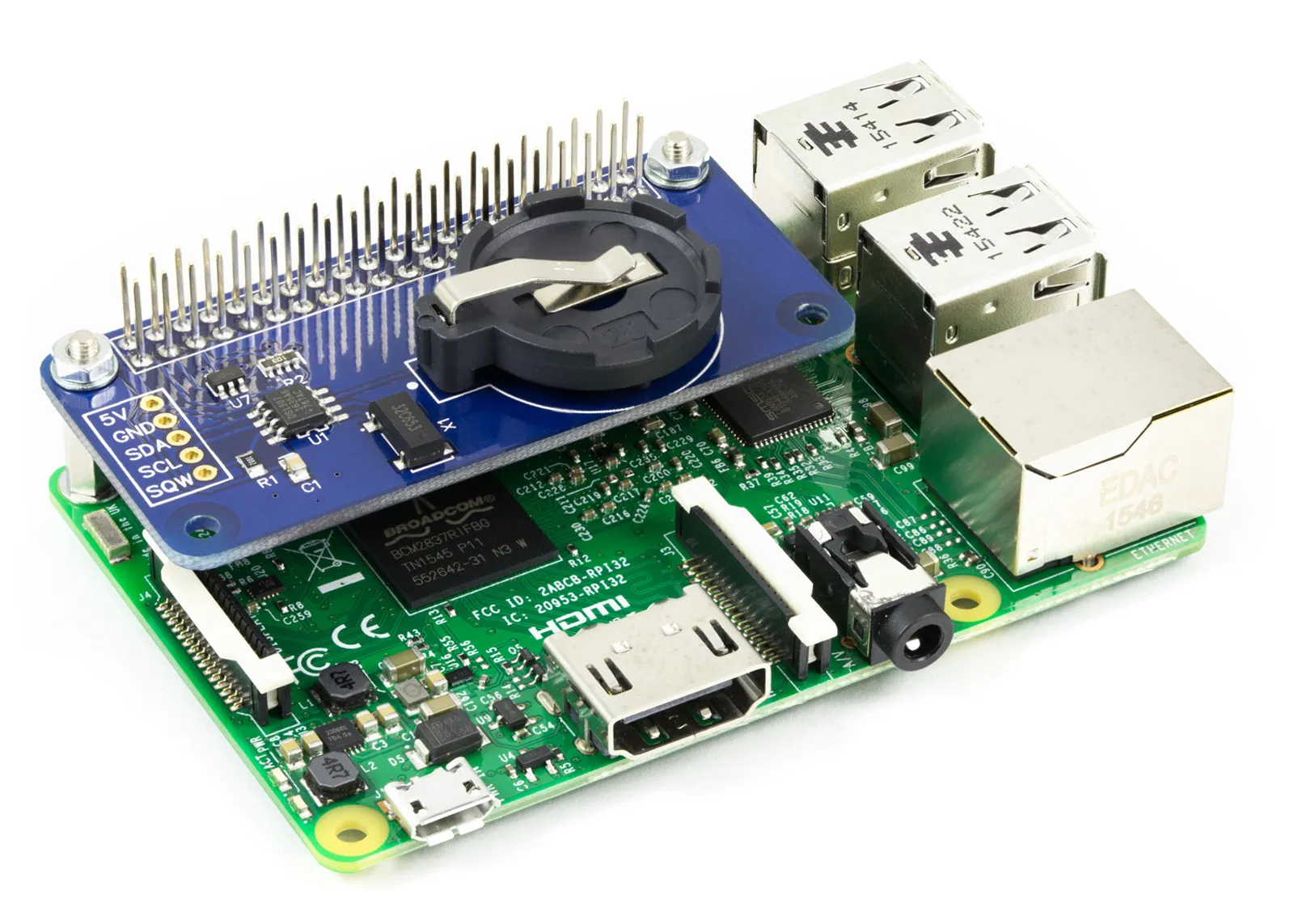

The RTC Pi is powered through the host Raspberry Pi using the GPIO port, and extended pins on the GPIO connector allow you to stack the RTC Pi along with other development boards. The RTC Pi uses the DS1307 RTC real-time clock and a CR2032 battery to maintain the date and time when the main system power is unavailable.

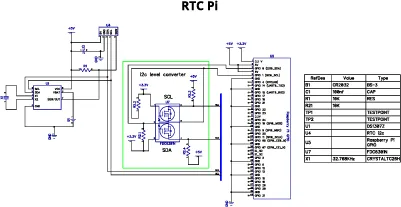

The RTC Pi also includes an I2C logic level converter allowing you to connect other 5V I2C devices to your Raspberry Pi.
A real time clock is beneficial for stand-alone projects where your Raspberry Pi will not have a network connection and, therefore, no way to retrieve the current date and time from the internet.

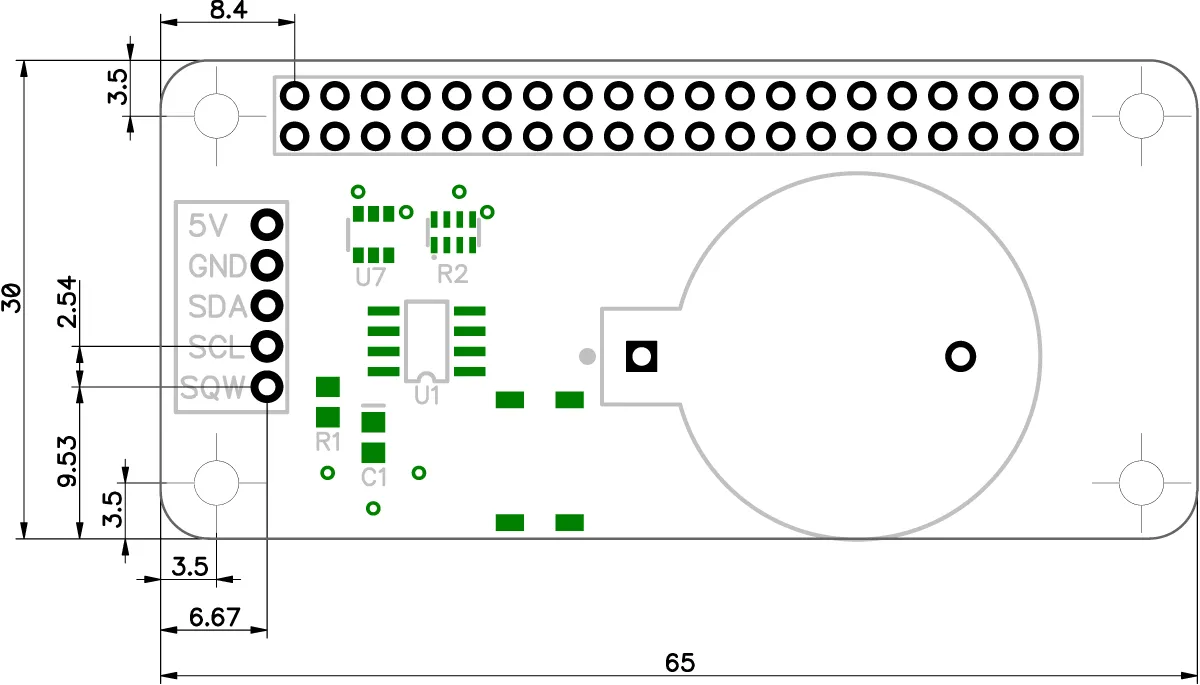

Mounting holes are provided so you can securely bolt the RTC Pi to your Raspberry Pi with our mounting kit (sold separately).
The RTC Pi can also be used on Arduino boards and the Raspberry Pi Pico when connected via the I2C bus.
The i2c address for the DS1307 RTC is 0x68. If you use this board alongside the ADC Pi or ADC Differential Pi boards, you will need to change the i2C address on those boards.
Warning: Do not connect the RTC Pi to your Raspberry Pi when the power is connected without a CR2032 battery installed. This can cause damage to the DS1307 RTC chip.
The RTC Pi Plus uses a CR2032 button battery (battery not included).
How to set and read the time
Follow our tutorial to set up the RTC Pi on your Raspberry Pi.
Technical Details
Compatibility
We have tested the RTC Pi on the following platforms.
| Model |
Status |
| Raspberry Pi Pico series |
|
| Raspberry Pi Model A / B |
|
| Raspberry Pi 1 Model A+ / B+ |
|
| Raspberry Pi 2 Model B |
|
| Raspberry Pi 3 Model A+ / B / B+ |
|
| Raspberry Pi 4 Model B |
|
| Raspberry Pi 5 |
|
| Raspberry Pi Zero |
|
| Raspberry Pi Zero W / Zero 2 W |
|
| Raspberry Pi Compute Module 4 IO Board |
|
| Raspberry Pi 400 |
|
| Orange Pi |
|
| Asus Tinker Board |
|
| Odroid |
|
Code Libraries and Demos
We have Python, MicroPython, C, C++, Node.js and Windows 10 IOT libraries for this expansion board. All of our software libraries are open source and can be download from our GitHub repository or by clicking on the logos below for your selected programming language.
Assembly Instructions

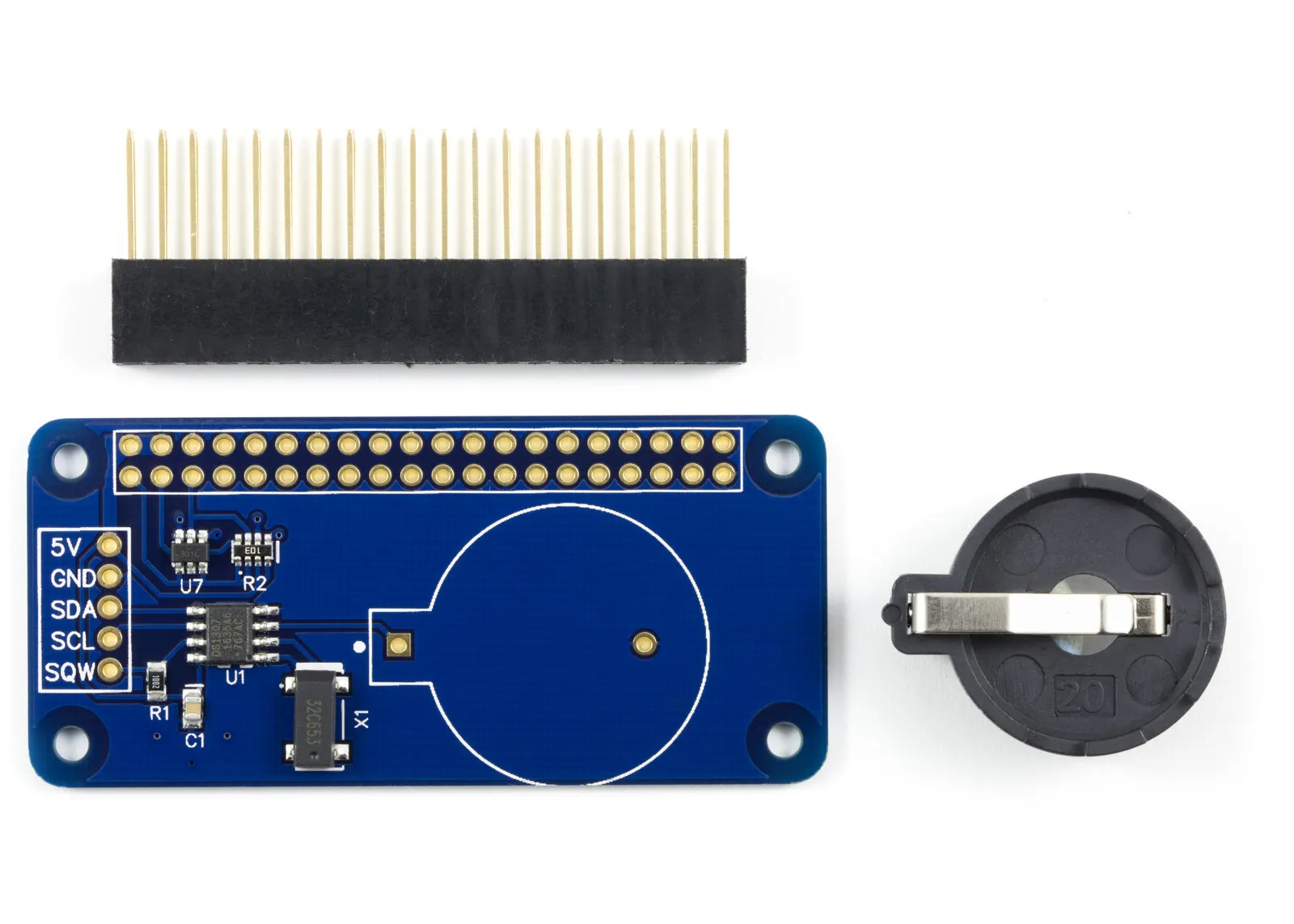

The RTC Pi is supplied with a 40-pin GPIO connector, and the battery holder is unsoldered.
We supply the RTC Pi this way because the Raspberry Pi is also provided without a GPIO header, and the RTC Pi could therefore be fitted both above or below the Raspberry Pi.
Before using the RTC Pi, you need to solder the 40-pin GPIO connectors onto the PCB and the battery holder.
We suggest soldering the 40-pin GPIO connector first and then the battery holder. Soldering the battery holder first will make it difficult to access the pins on the GPIO connector. The PCB has an outline for the battery connector to ensure the correct fitting.
PCB Header Assembly Jig
Download and print our PCB Header Assembly Jig to hold your circuit board when soldering the header pins.
