Screw Terminals 2 pin 2.54mm

2.54mm pitch, 2 pin screw terminal

£0.71 each (excluding VAT: £0.59)
476 available
Product Code: 2 Way
EAN: 7426787870408

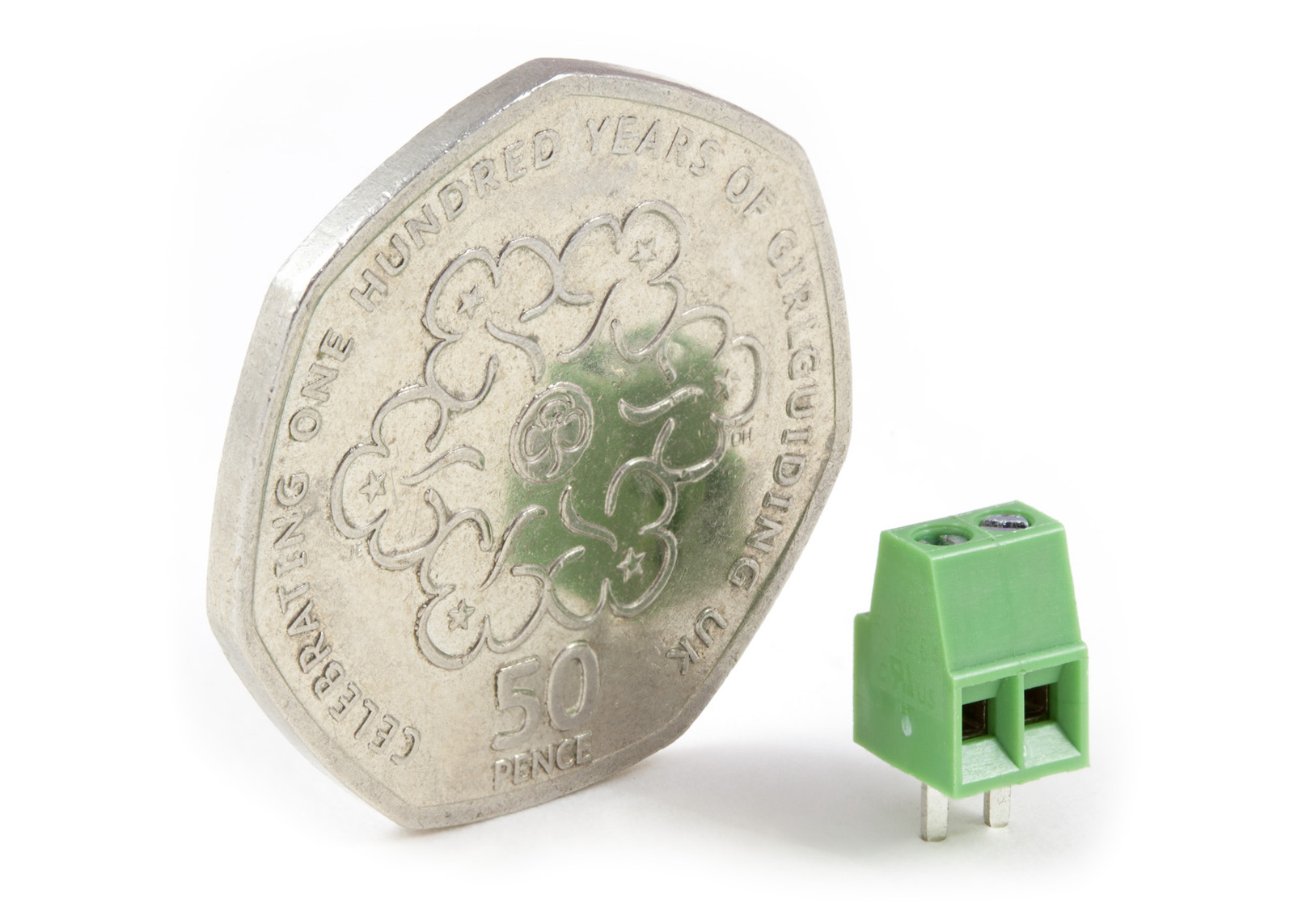

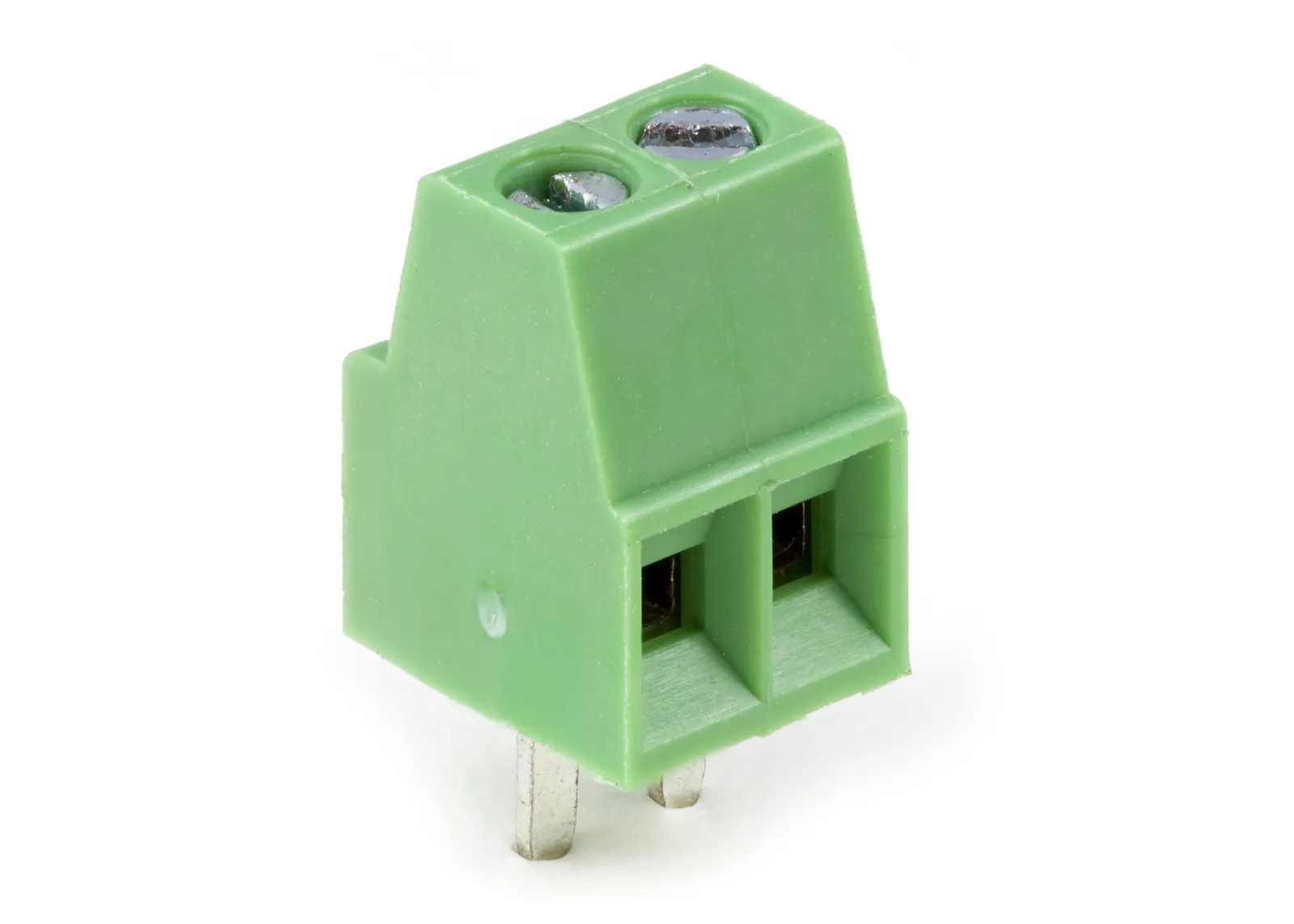

This is a 2-pin screw terminal with 2.54mm (0.1 inch) pitch pins.

The 2.54mm pitch will fit our Raspberry Pi expansion boards to connect external power, sensors or other input/output devices. The connectors will not fit in a row on 2.54 headers due to the width of the housing.

Technical Details

Rated up to 150V at 6 A per connector.

Contact Resistance: 20 Milliohms Max

The terminals can accept 18 – 30 AWG wire.

Share: Twitter Facebook


View PDF Datasheet


Screw Terminals 2 pin 2.54mm

£0.71 each (excluding VAT: £0.59)
