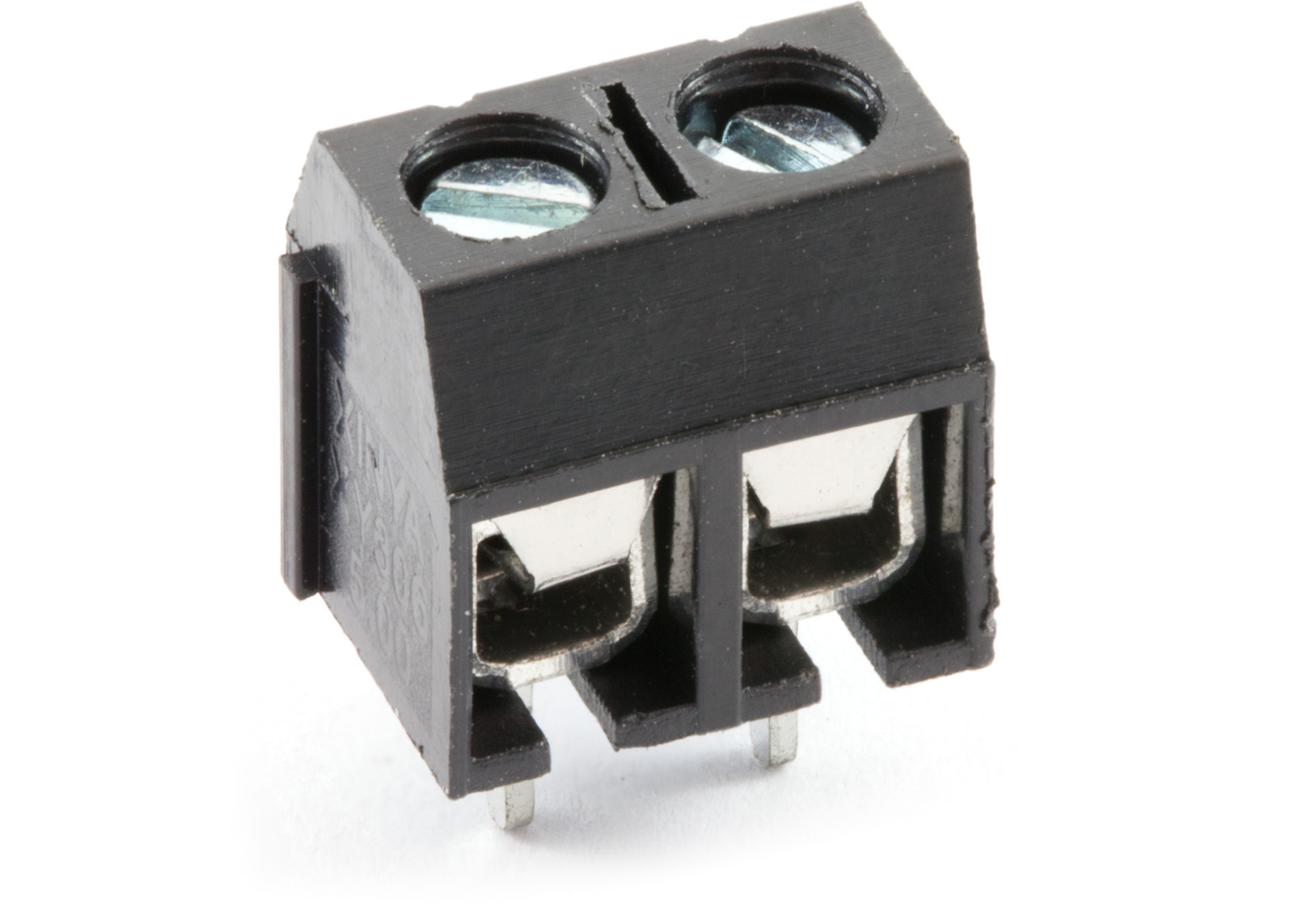

Home Shop Screw Terminals 2 pin 5mm Screw Terminals 2 pin 5mm 5mm Pitch 2 Pin 16A PCB Screw Terminal General Info Technical Details This is a 2-pin screw terminal with 5mm pitch pins. Technical Details Rating 16A 250V Insulation resistance 5000M Ω/1000V Withstand voltage AC1500V/1min Contact resistance 20mΩ (max) Working temperature -33°C to 120+°C Mouldings UL94-V0 flame retardant PA66 Pin/terminal Nickel plated brass Wire protector Stainless steel Screw/torque M2.5 steel, nickel plated 0.4Nm Recommended PCB hole size ø1.3mm Dimensions: Width: 10.6mm Depth: 7.6mm Height: Body: 10mm, Pins: 3.5mm £0.69ex VATIn Stock: 708 available Add to Basket EU Orders EU orders less than €150 include VAT at your countries rate, and are free from additional import fees under our IOSS registration. Product Code: 2 Way EAN: 7426787870354 Free delivery on orders over £35 ex VAT You may also like Screw Terminals 2 pin 2.54mm 2.54mm pitch, 2 pin screw terminal Screw Terminals 3 pin 5mm 5mm Pitch, 3 Pin, 16A PCB Screw Terminal Screw Terminals 8 pin 2.54mm Pitch, 8 pin Screw Terminal Important Information This development board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by abelectronics.co.uk to be a finished end-product fit for general consumer use. As such, the goods being provided are not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards. Persons handling the product(s) must have electronics training and observe good engineering practice standards. This development board/kit does not fall within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the technical requirements of these directives or other related directives. Note: documents in Portable Document Format (PDF) require Adobe Acrobat Reader 5.0 or higher to view, download Adobe Acrobat Reader or other PDF reading software for your computer or mobile device.
