Serial Pi Zero

£8.49 each (including VAT: £10.19)

  • RS232 Master Port.
  • Control the Raspberry Pi Zero over RS232 or connect to external serial accessories.

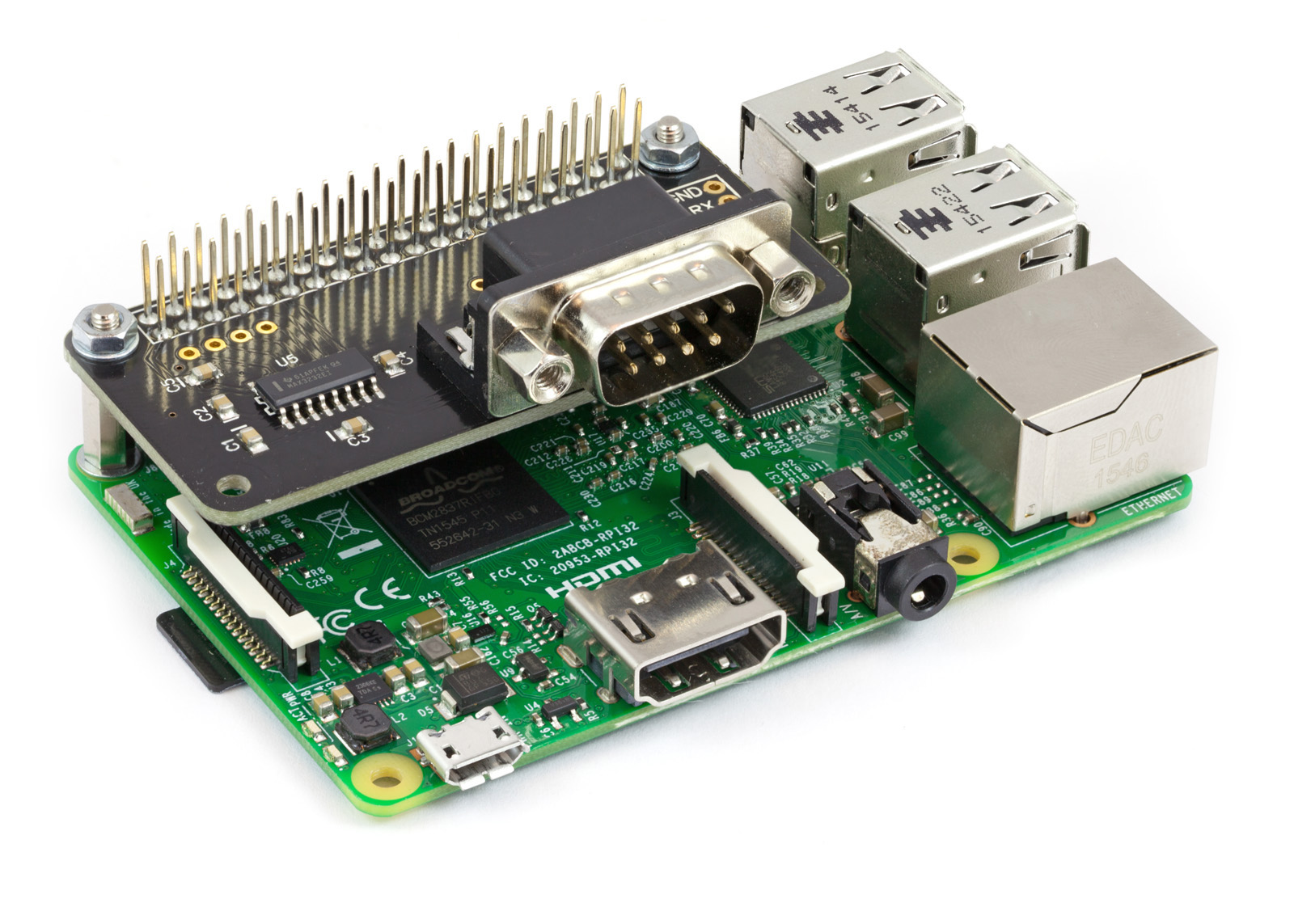

  • Stackable with other Raspberry Pi accessory boards.

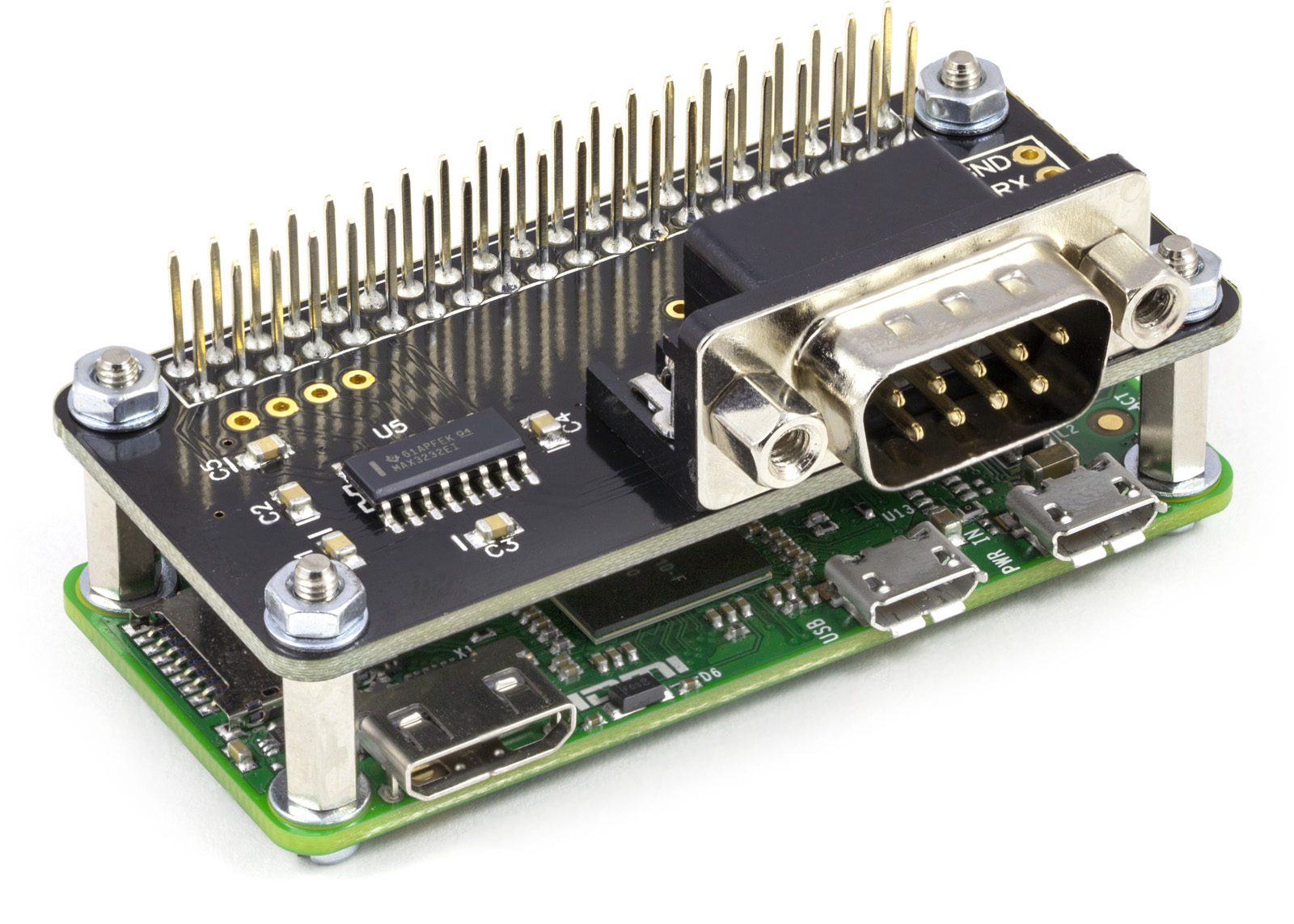

  • Mounting holes for use with the AB Electronics UK mounting kits (sold separately)

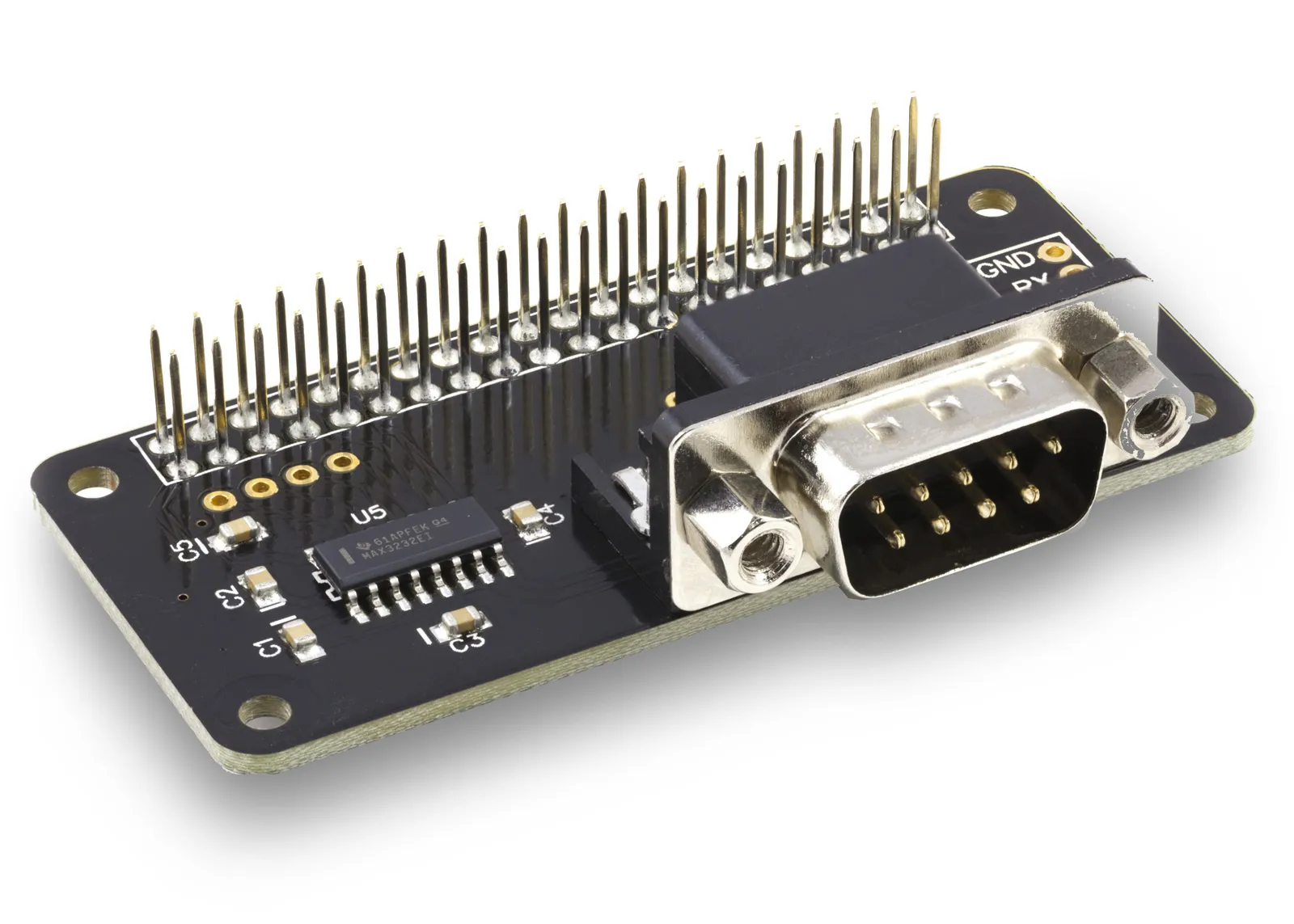

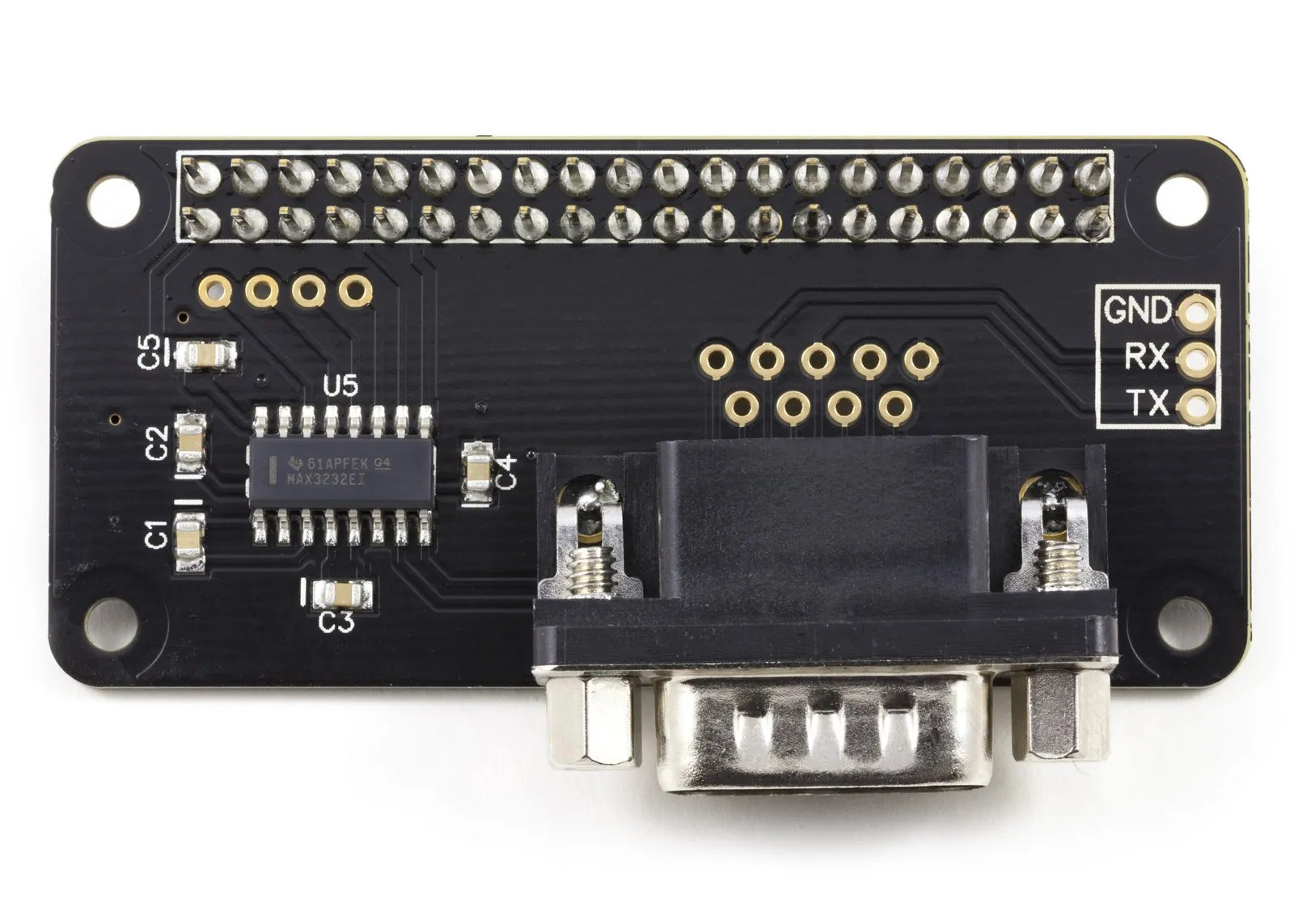

The Serial Pi Zero is a communication board supporting the RS232 serial protocol.

The RS232 port is connected to the UART port on the Raspberry Pi using a MAX3232 interface. The MAX3232 IC converts the 3.3V UART port to RS232 voltages allowing communication with RS232 compatible devices over a DB9 serial cable or with the use of a null-modem cable the board allows terminal access with linux on the Raspberry Pi using a terminal application. The RS232 port can be accessed through the DB9 port or the solder points on the PCB.

An array of 2.54mm pitch holes with 3.3V and 5V connections are also provided on the PCB allowing you to build additional circuits on the board.

Please note that you can only use one Serial Pi board on a Raspberry Pi. if stacking with other boards we recommend putting the Serial pi at the top of the stack due to the height of the DB9 connector.

*You need to use the Raspbian Jessie release or later and disable the built in Bluetooth to use the Serial Pi Zero on the Raspberry Pi 3 or Raspberry Pi Zero W, see our KB page for the config changes needed.


Specifications

Input Ratings & Specifications

Spec
Ratings
Supply Voltage
3.3V to 5.5V
Logic Voltage at UART Port
3.3V
Maximum Data Rate
250 kbits/s
RS232 Input voltage range
-25V to +25V
RS232 Output voltage range
-13.2V to +13.2V

Schematic

Click to download
Click to download schematic PDF.

Mechanical Drawings

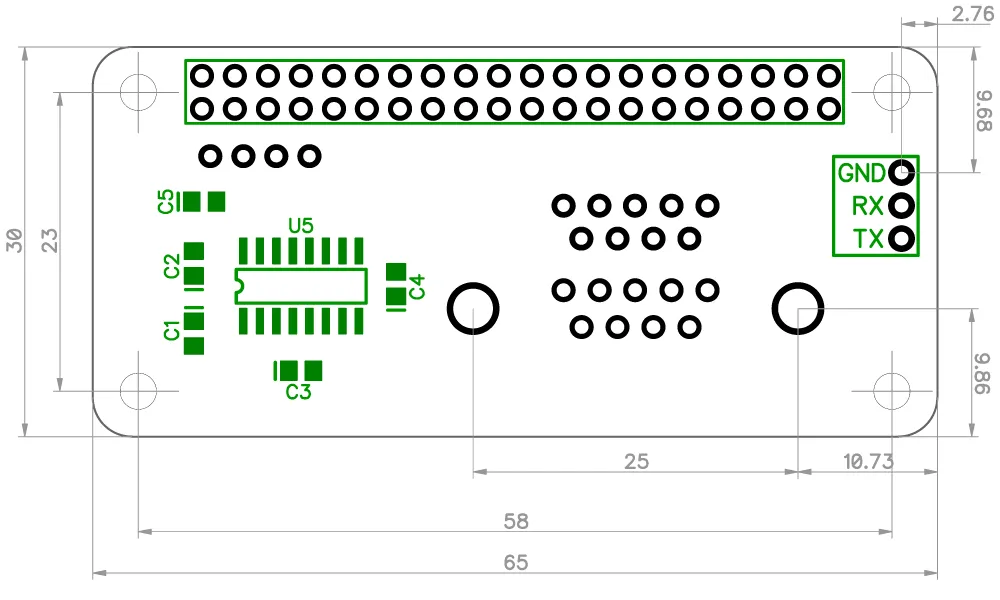

Mechanical Drawing


Assembly

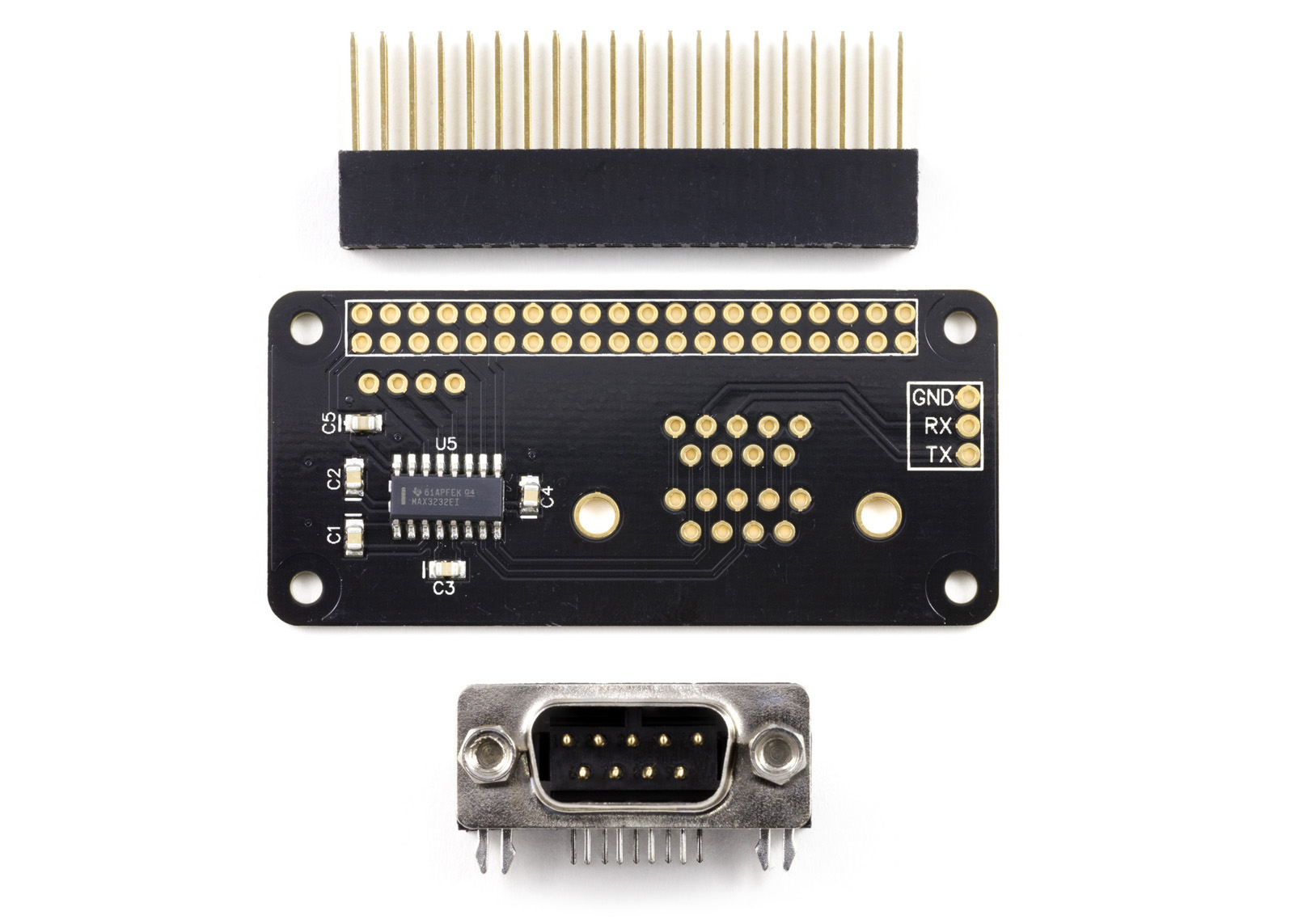

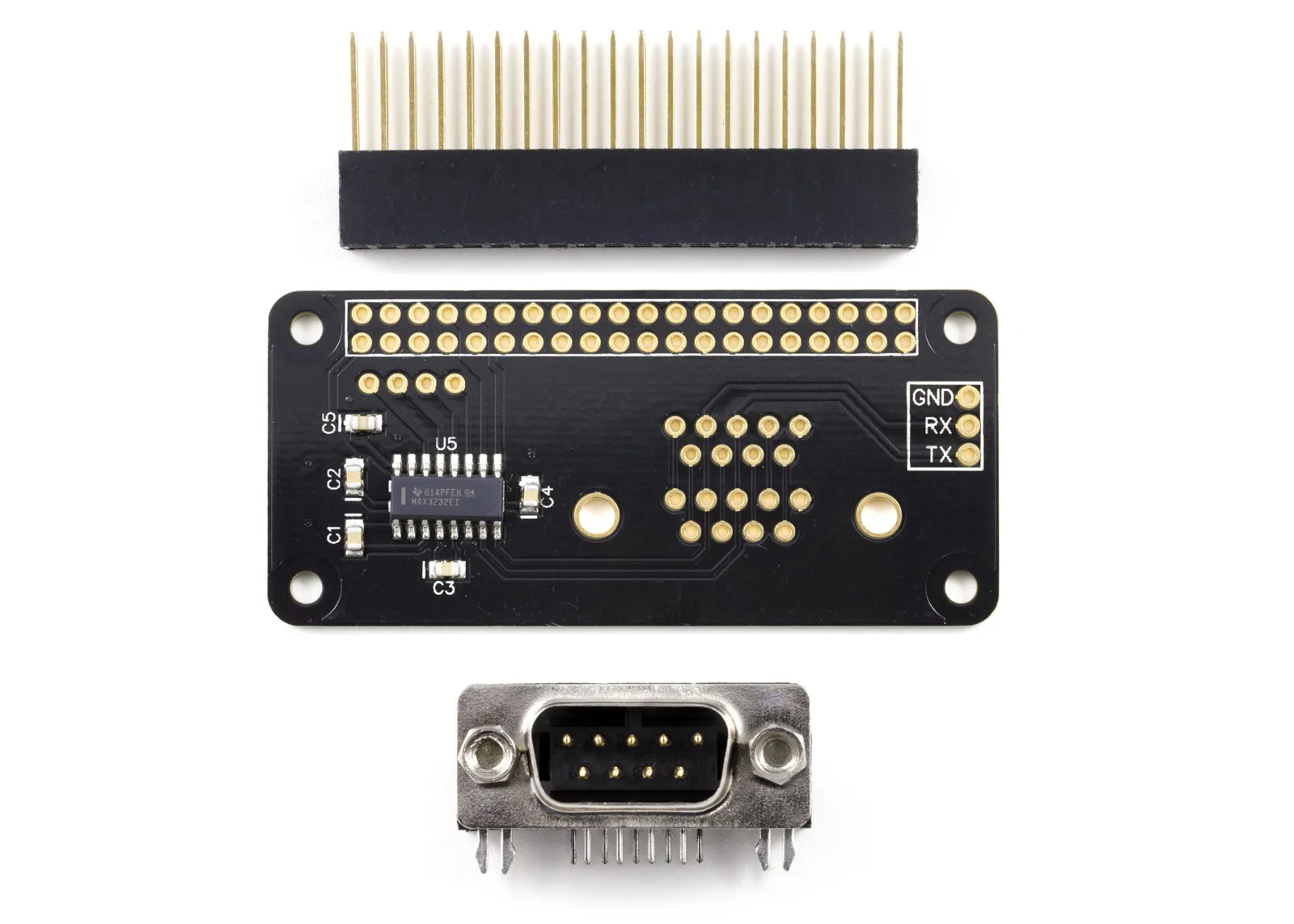

The Serial Pi Zero is supplied with the 40 pin GPIO connector and the DB9 connector unsoldered.

Before using the Serial Pi Zero you will need to solder both connectors onto the PCB.  We suggest soldering the 40 pin GPIO connector first and then the DB9 connector.

To make assembly easier we have designed a PCB header assembly jig which you can download and print.

Watch the assembly video for the Serial Pi Plus which uses the same assembly steps as the Serial Pi Zero.



PCB Header Assembly Jig

Download and print our PCB Header Assembly Jig to hold your circuit board when soldering the header pins.

Use

RS232 Port

The pin-out connections for the RS232 port are shown below:

Pin Usage
1 N/C
2 RX (data receive)
3 TX (data transmit)
4 N/C
5 Ground
6 N/C
7 N/C
8 N/C
9 N/C

DB9 connector as viewed from the front of the Serial Pi Plus

Using the RS232 port for terminal connections

The RS232 port can be used for remote terminal connections on the Raspberry Pi allowing remote access and control without the need for an ethernet connection. In order to connect the Serial Pi to a desktop computer you will need to use a Null-Modem cable. A wiring diagram for making a Null-Modem cable can be found below. For details on configuring the RS232 communication on the Raspberry Pi visit our knowledge base.

Null-Modem Cable

Null modem wiring diagram

Connector 1 Connector 2 Function
2 3 Rx ← Tx
3 2 Tx → Rx
5 5 Ground

Compatibility

Model Status
Raspberry Pi Model A No
Raspberry Pi Model B No
Raspberry Pi 1 Model A+ Yes
Raspberry Pi 1 Model B+ Yes
Raspberry Pi 2 Model B Yes
Raspberry Pi 3 Model B * Yes
Raspberry Pi Zero Yes
Raspberry Pi Zero W Yes
Orange Pi Yes
Asus Tinker Board Yes
Odroid Yes

*You need to use the latest Raspbian Jessie release and disable the built in Bluetooth to use the Serial Pi Plus on the Raspberry Pi 3, see our KB page for the config changes needed.


Datasheets

Ti MAX3232E
