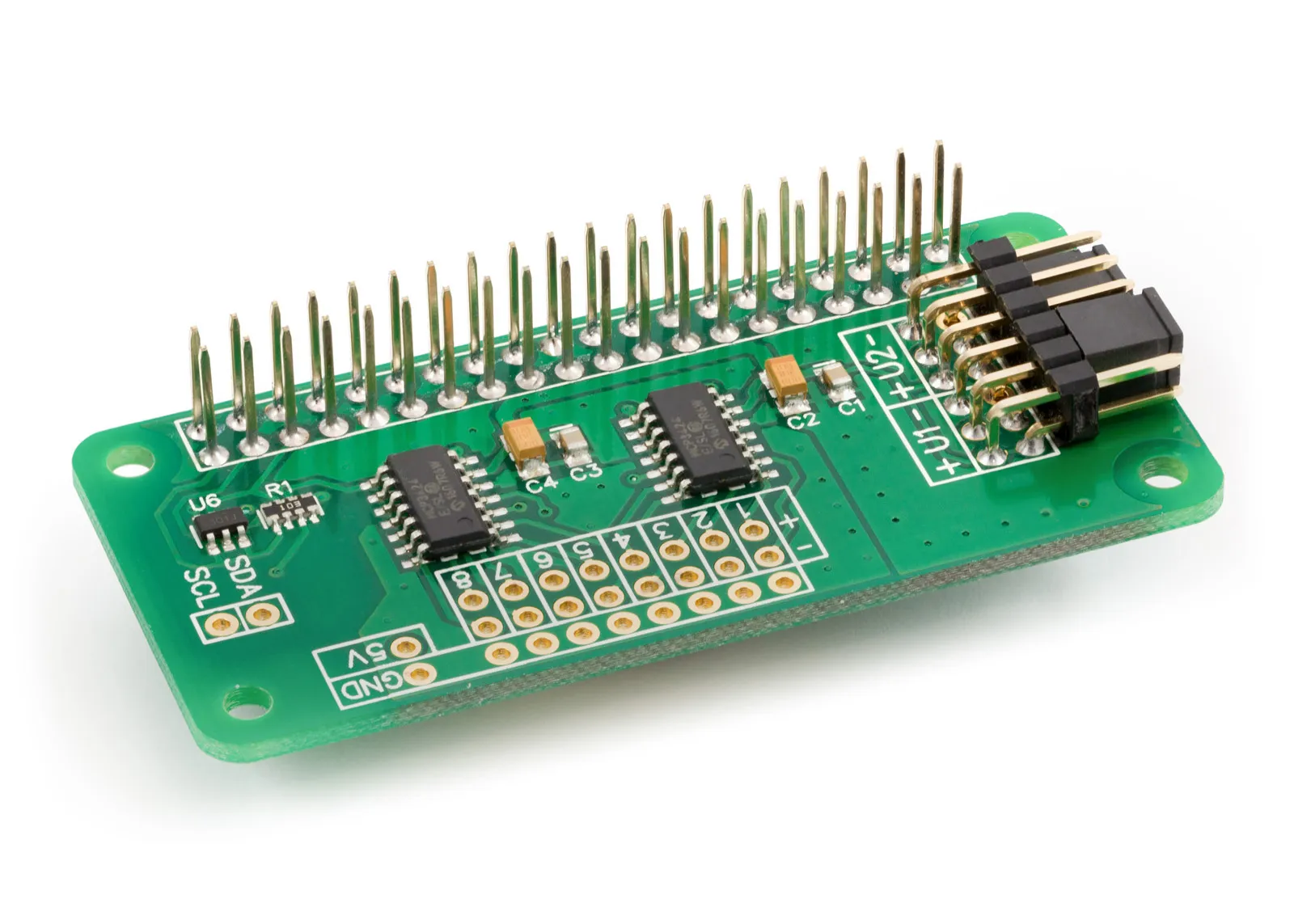

ADC Differential Pi

£15.49 each (including VAT: £18.59)

Add a Mounting Kit Four Pack
for only £3.49 each ex vat
Order  Mounting kit to use on our Raspberry Pi + and 2 boards
Add a 24 Pin 8 x 3 Right Angle Header
for only £0.79 each ex vat
Order  24 Pin 8 x 3 Right Angle Header suitable for use with the Servo Pi or ADC Differential Pi
Add a 40 Pin Single Row Header
for only £0.55 each ex vat
Order  40 Pin 40 x 1 Header suitable for the Pi Zero


  • 8 x 18-bit differential inputs
  • Control via the Raspberry Pi I2C port
  • Stack up to 4 ADC Differential Pi boards on a single Raspberry Pi
  • Jumper selectable I2C addresses
  • Buffered 5V I2C port
  • Based on the MCP3424 from Microchip Technologies Inc
  • Input range of ±2.048V
  • On-board 2.048V reference voltage (Accuracy  ± 0.05%, Drift: 15 ppm/°C)
  • On-Board Programmable Gain Amplifier (PGA): Gains of 1, 2, 4 or 8
  • Programmable Data Rate Options:
       - 3.75 SPS (18 bits)
       - 15 SPS (16 bits)
       - 60 SPS (14 bits)
       - 240 SPS (12 bits)
  • One-Shot or Continuous Conversion Options


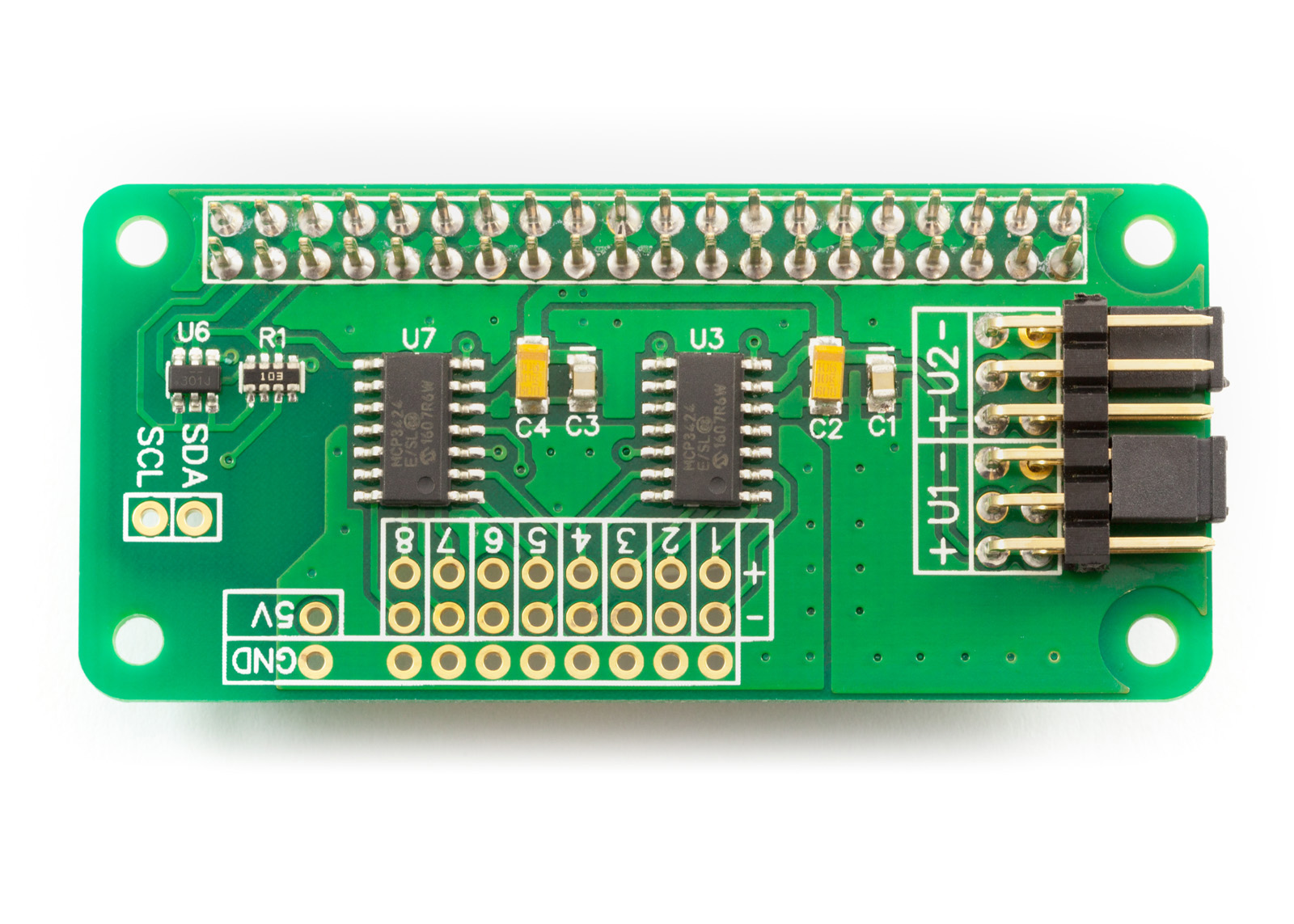

The ADC Differential Pi is an 8 channel 18 bit analogue to digital converter designed to work with the Raspberry Pi. The ADC Differential Pi is based on two Microchip MCP3424 A/D converters each containing 4 analogue inputs.  The MCP3424 is a delta-sigma A/D converter with low noise differential inputs.

Not sure which ADC you need ? Check our Analogue to Digital Buyers guide to compare our ADC expansion boards.

We designed the ADC Differential Pi as a companion for our ADC Pi Plus.  Unlike the ADC Pi Plus the ADC Differential Pi does not include any voltage dividers so the inputs can be used to measure a differential voltage range of ±2.048V.  This is useful for measuring inputs below ±2.048V or allows you to use your own voltage divider to measure higher voltages.

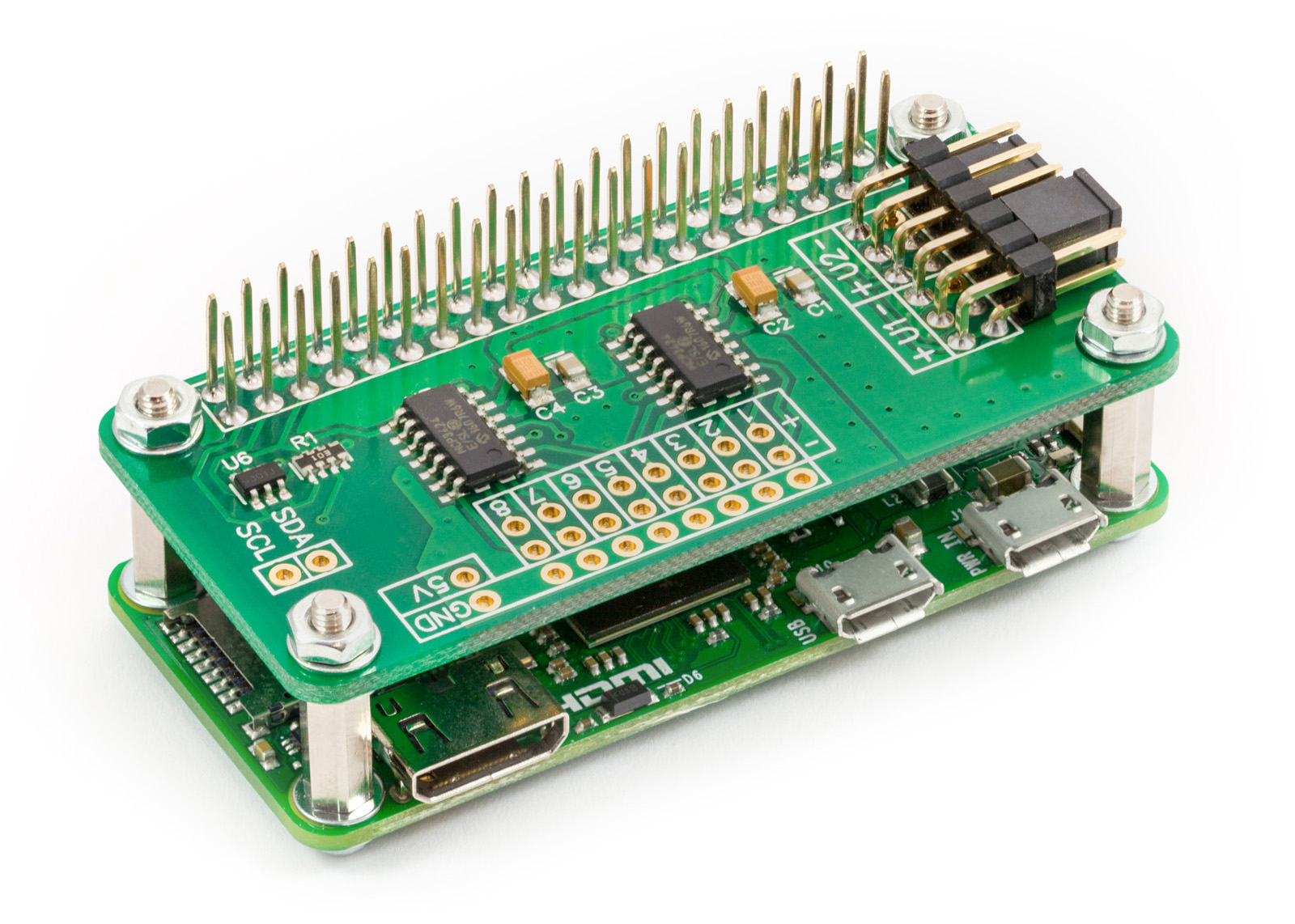

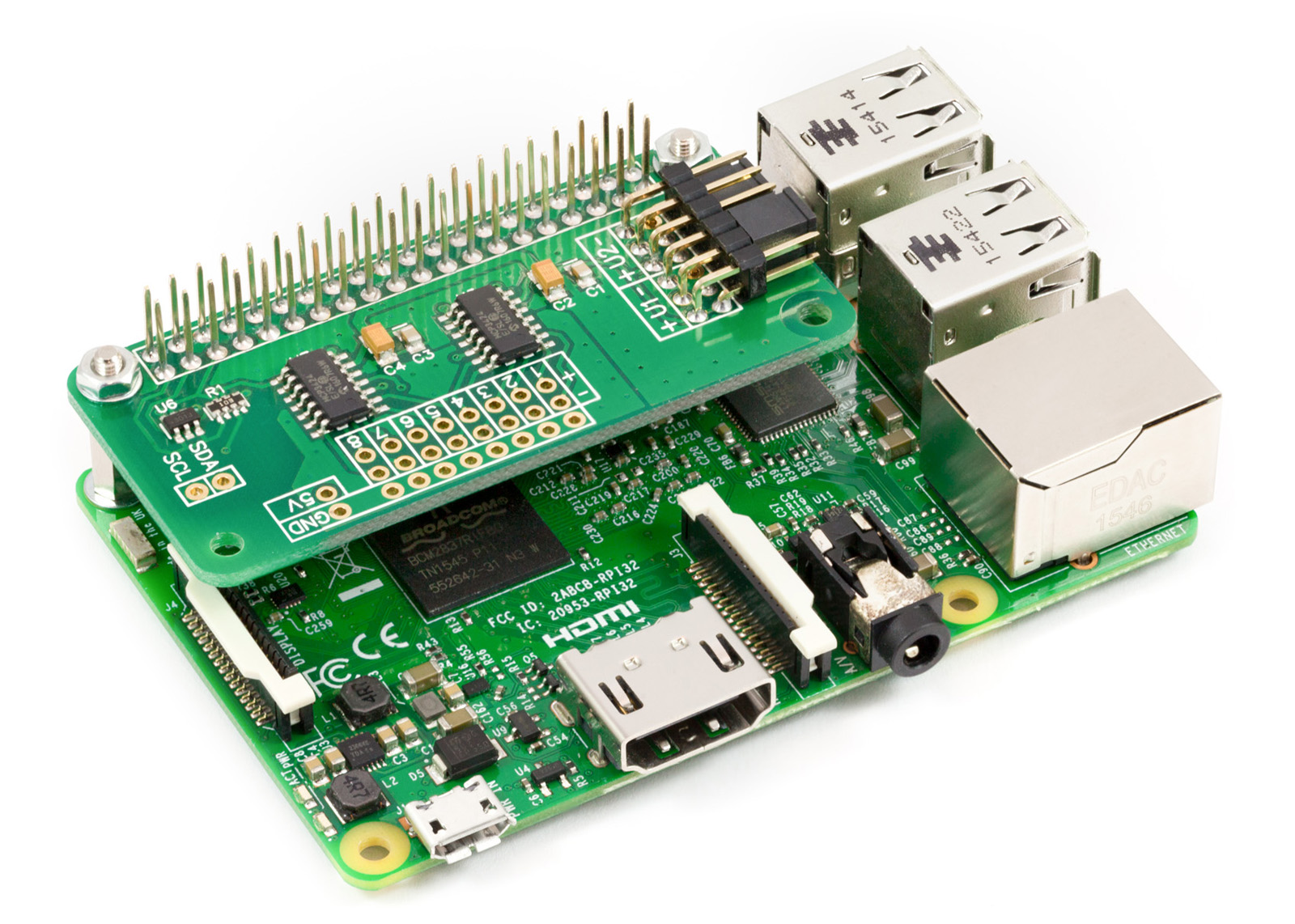

The ADC Differential Pi is powered through the host Raspberry Pi using the GPIO port and extended pins on the GPIO connector allow you to stack the ADC Differential Pi along with other expansion boards.

The two MCP3424 A/D converters communicate via i2c to the host Raspberry Pi giving you eight analogue inputs to use.  A logic level converter is included on the ADC Pi Plus board giving you a buffered 5V i2c port making it easy to add other I2C devices which operate at 5 volts without damaging the raspberry pi 3.3 volt i2c port.  The i2c buffer uses N-channel mosfets with a maximum drain current of 100mA.

The I2C address bits are selectable using the on-board jumpers.  The MCP3424 supports up to 8 different I2C addresses so with two A/D converters on each ADC Differential Pi you can stack up to 4 ADC Differential Pi boards on a single Raspberry Pi giving you 32 ADC inputs.

The MCP3424 contains an on-board 2.048V reference voltage with an input range of ±2.048V differentially (full scale range of 4.096V/PGA).  A programmable Gain Amplifier gives the user a selectable gain of x1, x2, x4 or x8 before the analogue to digital conversion takes place.

The data rate for analogue to digital conversions is 3.75 (18 bit), 15 (16 bit), 60 (14 bit) or 240 (12 bit) samples per second. Data rate and resolution can be configured within software using the I2C interface.

We have a knowledge base article, ADC Sample Rate Comparison which has more detailed sample information and test scripts to compare the different MCP2424 ADC chip bit and sample rates.

Unused inputs should be tied to ground.

I2C Address Selection

The MCP3424 analogue to digital converter contains two address select pins which can be tied to Vss, Vdd or left floating.  This gives 8 possible I2C addresses for each chip.  The ADC Differential Pi contains two MCP3424 chips so you can stack up to 4 ADC Differential Pi boards on a single Raspberry Pi.  To simplify address selection on the ADC Differential Pi we have included a set of address selection pins which can be configured using the included jumpers. The illustrations below show the four recommended configurations for your ADC Differential Pi and the associated I2C addresses.

Disconnect the ADC Differential Pi from the Raspberry Pi before changing the address pins.  You may need to short the 5V and ground with a resistor to discharge the capacitors in order for the new addresses to be recognised.

Address selection pins

I2C Address Table

Adr 0 Adr 1 I2C Address
Low or Float Low or Float 0x68
Low Float 0x69
Low High 0x6A
Float Low 0x6B
High Low 0x6C
High Float 0x6D
High High 0x6E
Float High 0x6F


Do not under any circumstanced connect the two centre pins together.  This will create a direct short between the 5V and ground pins and will damage or destroy your Raspberry Pi and ADC Pi Plus board.

Recommended Address Configurations

Configuration 1:

Analogue Channels 1-4 = I2C Address: 0x68
Analogue Channels 5-8 = I2C Address: 0x69

Address Configuration 1

Configuration 2:

Analogue Channels 1-4 = I2C Address: 0x6A
Analogue Channels 5-8 = I2C Address: 0x6B

Address Configuration 2

Configuration 3:

Analogue Channels 1-4 = I2C Address: 0x6C
Analogue Channels 5-8 = I2C Address: 0x6D

Address Configuration 3

Configuration 4:

Analogue Channels 1-4 = I2C Address: 0x6E
Analogue Channels 5-8 = I2C Address: 0x6F

Address Configuration 4



Compatibility Chart

Raspberry Pi Model A No
Raspberry Pi Model B No
Raspberry Pi 1 Model A+ Yes
Raspberry Pi 1 Model B+ Yes
Raspberry Pi 2 Model B Yes
Raspberry Pi 3 Model B Yes
Raspberry Pi Zero Yes
ODroid C1 Yes
ODroid C2 Yes

Maximum Ratings & Specifications

Vdd (5V pin on I2C bus) 5.0V
All AD inputs and outputs VSS–0.4V to VDD+0.4 V
Current at Input Pins ±2 mA
I2C SDA/SCL voltage 5.0 V
I2C port current 100 mA


Board Layout

Board Layout


Click to download
Click to download schematic PDF.

Mechanical Drawings

Mechanical Drawing

Click image to enlarge

Sample Code

We have Arduino, C, Windows 10 IOT, Python 2 and Python 3 libraries available for this expansion board.  You can download all of the libraries from github at:

Download the Arduino libraries from:

To download the C libraries to your Raspberry Pi type in terminal:

git clone

To download the Python 2 libraries to your Raspberry Pi type in terminal:

git clone

To download the Python 3 libraries to your Raspberry Pi type in terminal:

git clone

Download the Windows 10 IOT libraries from:

Download Python 2 and 3 code samples

Download Arduino code samples

Assembly Instructions

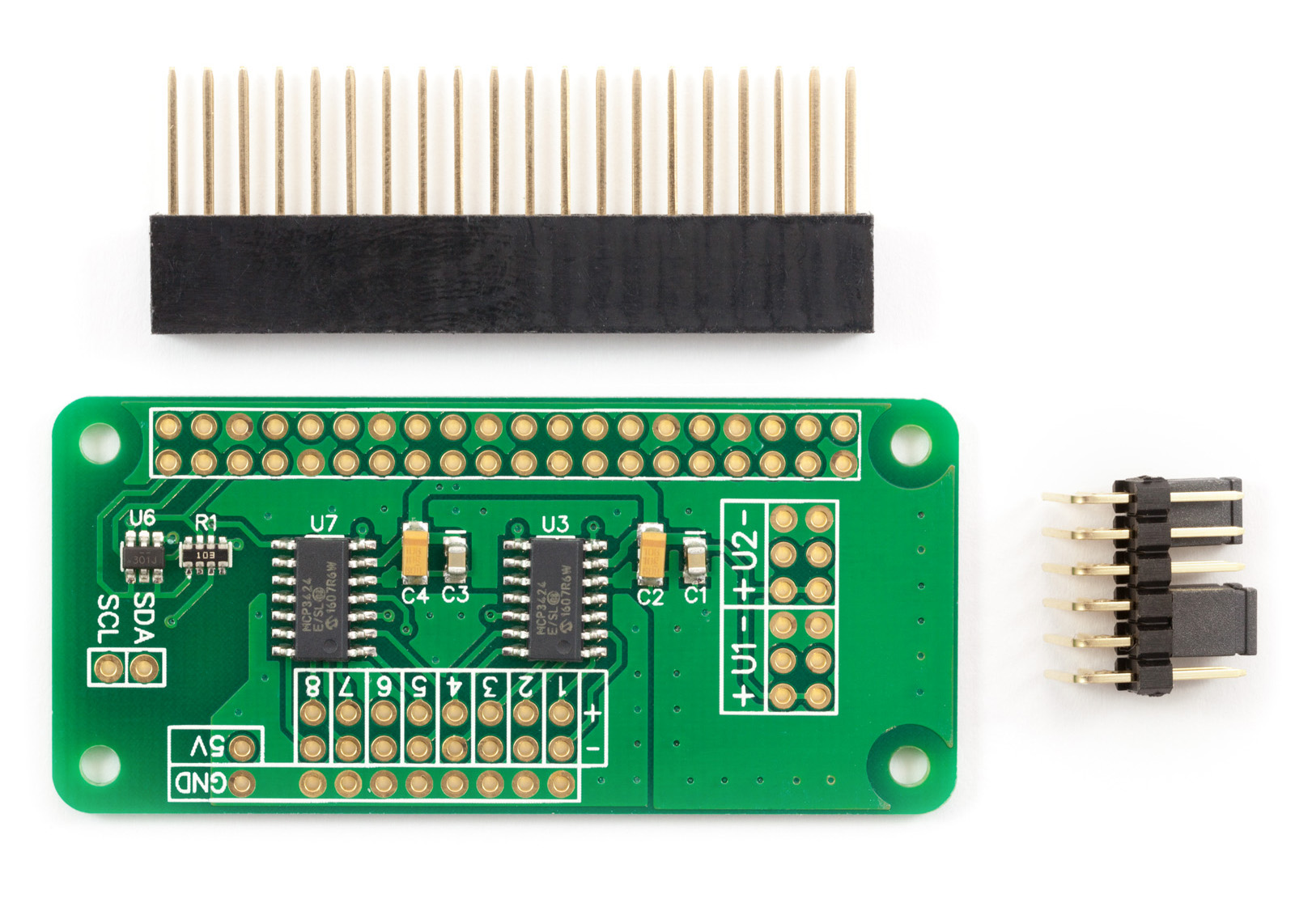

The ADC Differential Pi is supplied with the 40 pin GPIO connector and the 12 pin address connector unsoldered.

Before using the ADC Differential Pi you will need to solder both connectors onto the PCB.  We suggest soldering the 40 pin GPIO connector first and then the address select connector.  Soldering the address select connector first will make it difficult to access the three corner pins on the GPIO connector.

Assembly for the ADC Differential Pi is the same as on our ADC Pi Plus. Watch the assembly video, best viewed in 1080p high quality mode:


PCB Header Assembly Jig

Download and print our PCB Header Assembly Jig to hold your circuit board when soldering the header pins.


Legacy Delta Sigma Pi Versions

See our KB article for previous versions of this board.
