Delta-Sigma Pi (Discontinued)

Delta-Sigma Pi ADC Board

This item has been replaced with the ADC Differential Pi

Go to the ADC Differential Pi.

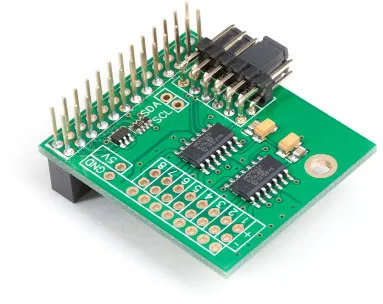

Delta Sigma Pi product image

The Delta-Sigma Pi is an 8-channel analogue to digital converter designed for the Raspberry Pi computer platform. The board is based around the MCP3424 low noise and high accuracy 18-bit delta-sigma analogue to digital converter from Microchip Technology Inc. A pair of MCP3424 converters are included on the board, and an I2C buffer interface allows you to connect additional 5V I2C devices to the same bus.

The I2C address bits are selectable using the onboard jumpers. The MCP3424 supports up to 8 different I2C addresses, so with two A/D converters on each Delta-Sigma Pi, you can stack up to 4 Delta-Sigma Pi boards on a single Raspberry Pi, giving you 32 ADC inputs.

The MCP3424 contains an onboard 2.048V reference voltage with an input range of ±2.048V differentially (full-scale range of 4.096V/PGA). A programmable Gain Amplifier gives the user a selectable gain of x1, x2, x4 or x8 before the analogue to digital conversion occurs.

The data rate for analogue to digital conversions is 3.75 (18-bit), 15 (16-bit), 60 (14-bit) or 240 (12-bit) samples per second. Data rate and resolution can be configured within the software using the I2C interface.

Datasheets

Delta Sigma Pi V2.0 Address Configuration and Specification

BSN20

MCP3424

Input Ratings & Specifications

Maximum voltage on ADC inputs: ± 2.048V

Maximum current on i2c port: 100mA.

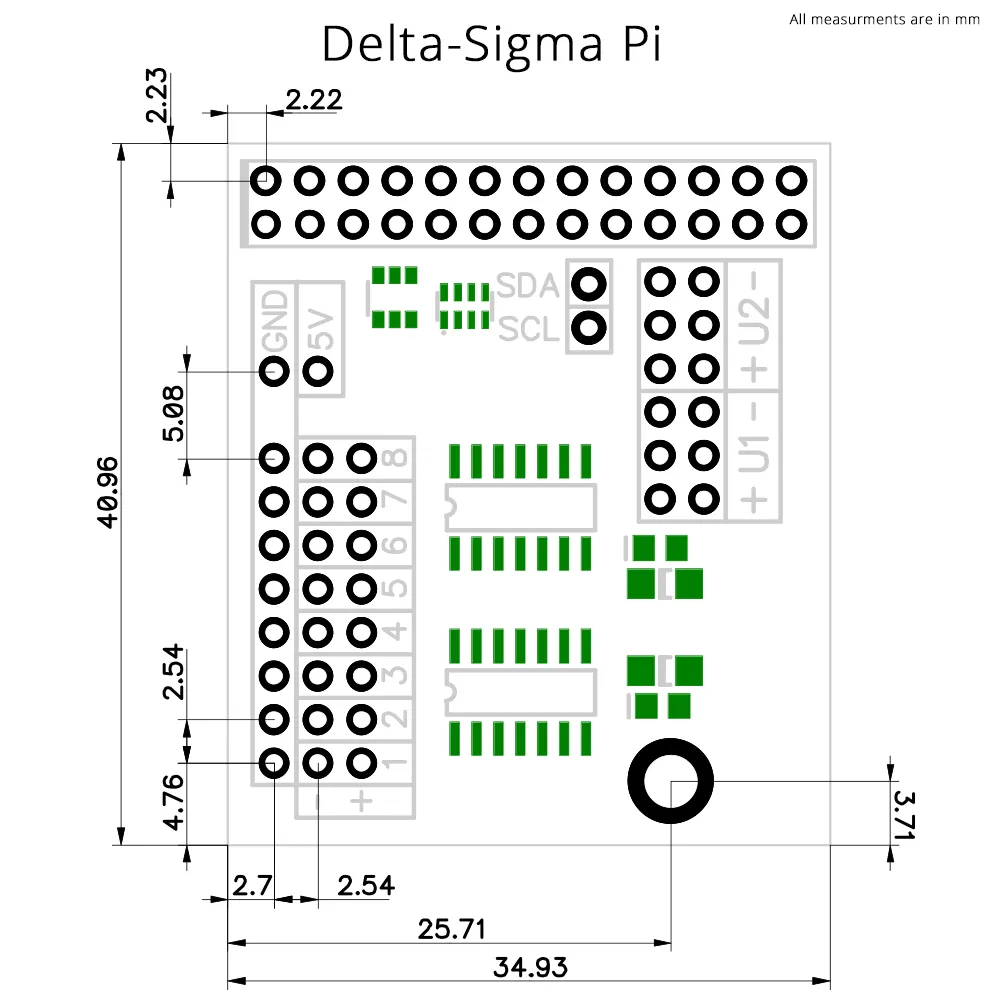

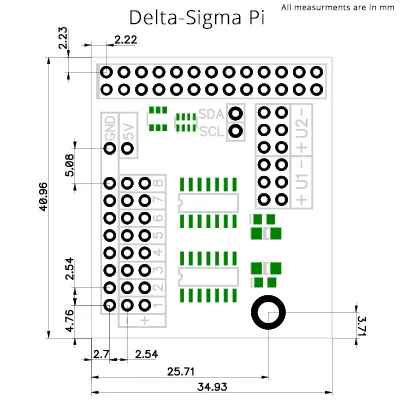

Mechanical Drawings

Click the image to enlarge

Sample Code

Arduino, C, Windows 10 IOT, Python 2 and Python 3 libraries are available for this expansion board. You can download all of the libraries from GitHub at:

https://github.com/abelectronicsuk/

Download the Arduino libraries from: https://github.com/abelectronicsuk/ABElectronics_Arduino_Libraries

To download the C libraries to your Raspberry Pi, type in the terminal:

git clone https://github.com/abelectronicsuk/ABElectronics_C_Libraries.git

To download the Python 2 libraries to your Raspberry Pi, type in the terminal:

git clone https://github.com/abelectronicsuk/ABElectronics_Python_Libraries.git

To download the Python 3 libraries to your Raspberry Pi type in the terminal:

git clone https://github.com/abelectronicsuk/ABElectronics_Python3_Libraries.git

Download the Windows 10 IOT libraries from:https://github.com/abelectronicsuk/ABElectronics_Win10IOT_Libraries/

Download Python 2 and 3 code samples

Download Arduino code samples



The datasheet for the Deta Sigma Pi version 1 can be downloaded here.


Was this article helpful? Yes No

Please tell us how we can improve this article:

Submit
Created 11/05/2016 | Last Updated: 01/01/2024
